ZDY Crawler Hydraulic Underground Drilling Rig

Full Hydraulic Tunnel Drilling Machine for Coal Mine Exploration

Product Overview

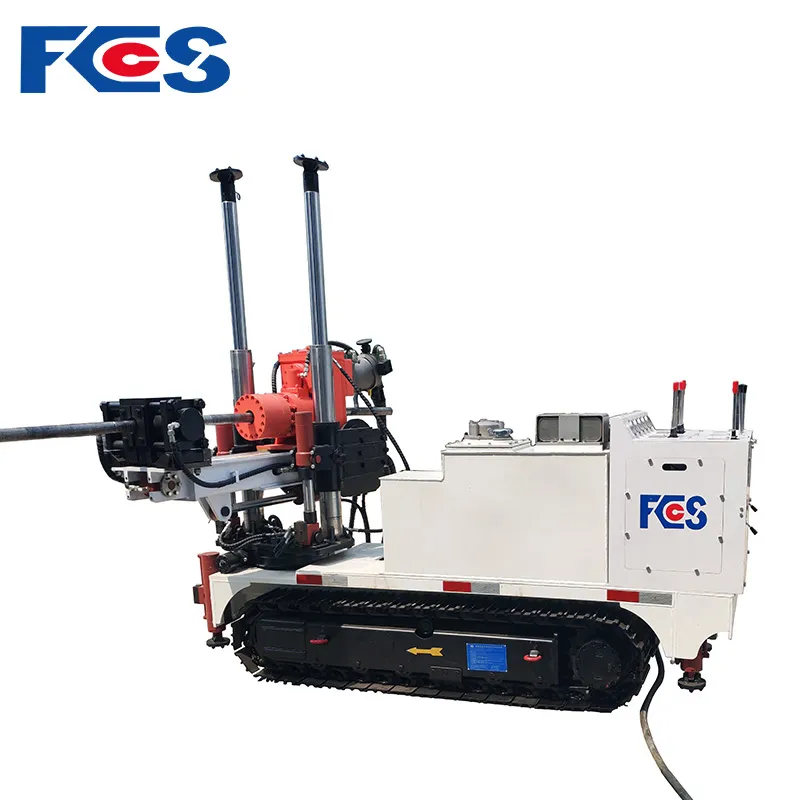

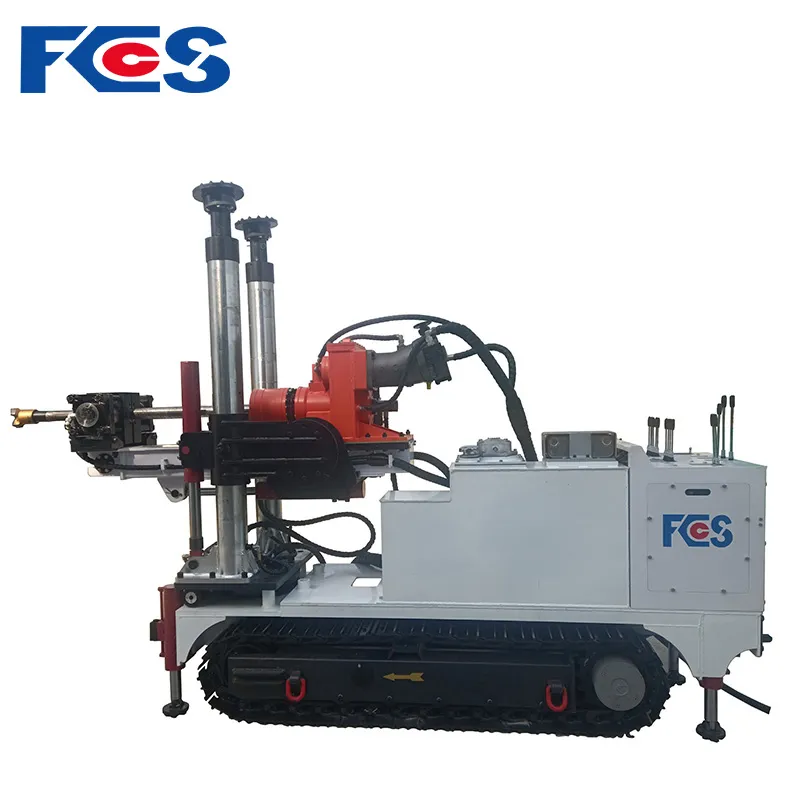

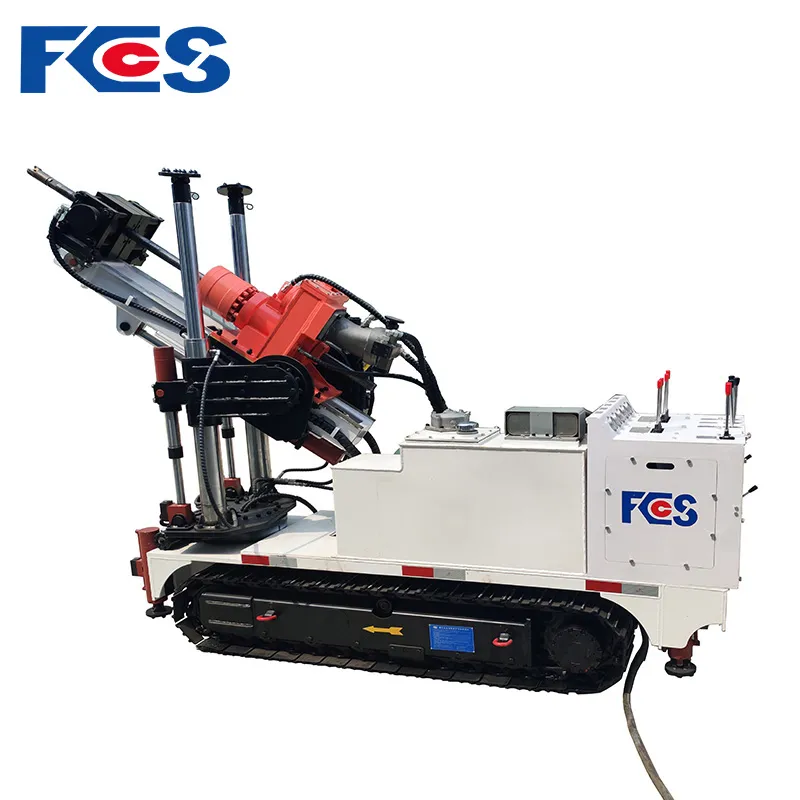

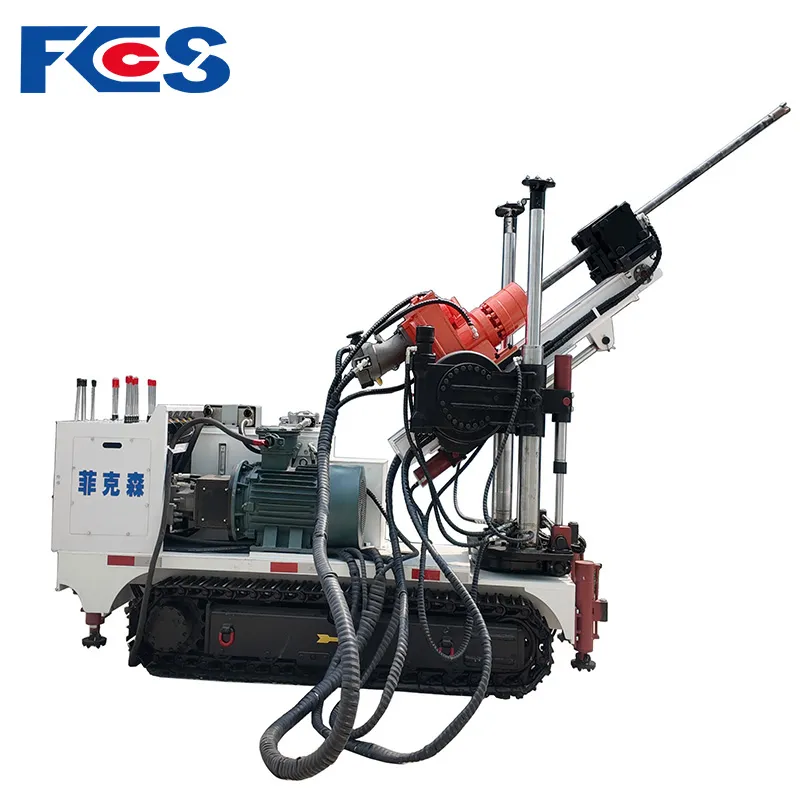

The ZDY Crawler Hydraulic Underground Drilling Rig is a high-performance drilling machine designed for underground coal mine operations such as water detection, gas drainage, geological exploration, and directional drilling.

Equipped with a full hydraulic system and crawler chassis, the ZDY series provides strong drilling capacity, stable operation, and excellent mobility in complex underground environments.

CONTACT NOW download to pdf

Crawler hydraulic tunnel drilling rig for coal mines is a device that uses an electric motor to drive a hydraulic pump, a hydraulic motor to drive the tracks, and a hydraulic motor to drive the drill bit. It is used to drill water and gas holes in soft rock or coal seams. It consists of a main hydraulic system, tracked running gear, working mechanism, and frame.

The Crawler hydraulic tunnel drilling rig for coal mines is a new generation of tracked drilling equipment for water exploration, gas exploration, fault exploration, roof caving, and water injection. It is mainly used for dense drilling in soft rock or coal seams where anti-outburst measures are required at the working face, but it is also suitable for other applications. This equipment features a compact structure, flexible operation, good mobility, full-face operation, good safety performance, and multi-purpose functionality. In addition to water and gas exploration, it can also drill into complex strata. It is equipped with ordinary reaming drill bits and other drilling tools, allowing for rotary drilling.

This drilling rig has the following advantages:

1. Safe operation, significantly reducing the physical labor intensity of workers. 1. Suitable for construction of horizontal and inclined tunnels with various cross-sections;

2. Compact structure, fully hydraulic control, convenient and flexible operation, crawler-mounted movement, easy relocation, good mobility, saving time and labor;

3. The drilling rig's power head has high torque and long stroke, resulting in high drilling efficiency and significantly improving work efficiency;

4. The hydraulic system is equipped with a rapid propulsion function, saving more than twice the time for loading and unloading drill rods. It also includes components for loading and unloading drill rods, reducing the labor intensity of operators.

5. Utilizing a variable displacement system, the no-load speed is high, and the speed decreases and the torque gradually increases with load changes, making drilling more efficient.

Typical Technical Specifications

Items		Unit	ZDY15000L	ZDY12000L	ZDY10000L	ZDY8500L	ZDY8000L
Main engine	Rated torque	N·m	7200~15000	5600~12000	4500~10000	3500~8500	3000~8000
	Rated speed	r/min	80~40	105~50	130~60	170~70	140~60
	Feed force	KN	210				130
	Pulling force	KN	300				190
	Feed stroke	mm	800
	Horizontal rotation angle	（°）	±90°	±90°	±180°	±180°	±180°
	Drilling inclination angle	（°）	–30°~90°	–30°~90°	±90°	±90°	±90°
	Drill rod diameter	mm	73~89	73~89	73~89	73~89	42~73
	Minimum working height	mm	1400±20
	Maximum working height	mm	1800±20	1400±20	2400±20	2400±20	2400±20
	Dimensions (length * width * height)	mm	440011002050（±50）		410010502050（±50）		400010502050（±50）
	Mass of main machine	kg	8500				7500
Travel mechanism	Travel speed	m/min	25
	Gradeability	（°）	±16
Pump station	Rated power	KW	132	110	90	90	90

Items		Unit	ZDY7300L	ZDY6500L	ZDY5600L	ZDY4500L	ZDY3600L
Complete Machine	Rated torque	N·m	2500~73000	2300~6500	2000~5600	1500~4500	1200~3600
	Rated speed	r/min	175~60	185~65	200~70	210~70	250~80
	Feed force/pull-out force	KN	130/190	130/190	130/190	75/110	65/95
	Feed stroke/pull-out stroke	mm	800	800	800	600	600
	Horizontal rotation angle	（°）	±180°
	Drilling inclination angle	（°）	±90°
	Drill rod diameter	mm	42~73
	Minimum working height	mm	1400±20	1400±20	1400±20	1350±20	1350±20
	Maximum working height	mm	2400±20	2400±20	2400±20	2350±20	2350±20
	Dimensions (length * width * height)	mm	400010502050（±50）			31009502000（±50）
	Mass of main machine	kg	7000	7000	7000	5000	5000
Travel mechanism	Travel speed	m/min	25
	Gradeability	（°）	±16
Pump station	Rated power	KW	75	75	75	55	55

Key Advantages for Buyers

✔ Suitable for deep and directional drilling
✔ High efficiency in gas and water exploration
✔ Strong adaptability to underground conditions
✔ Reliable and durable design
