BLY Series Tracked Mud Pump Vehicle for Mining

Compact, Mobile and Efficient Slurry Pump Solution for Underground Operations

Product Overview

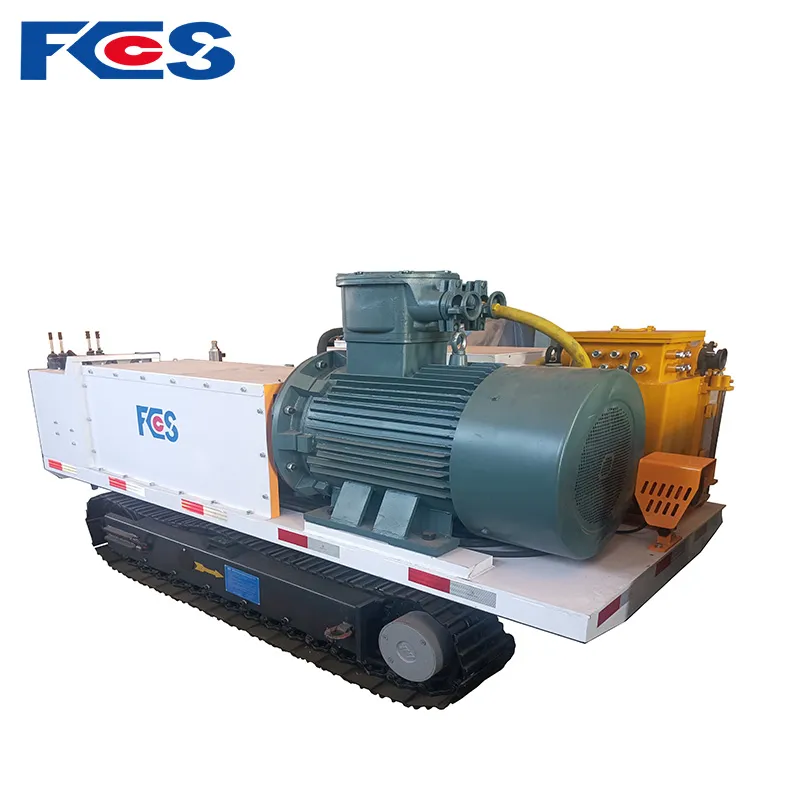

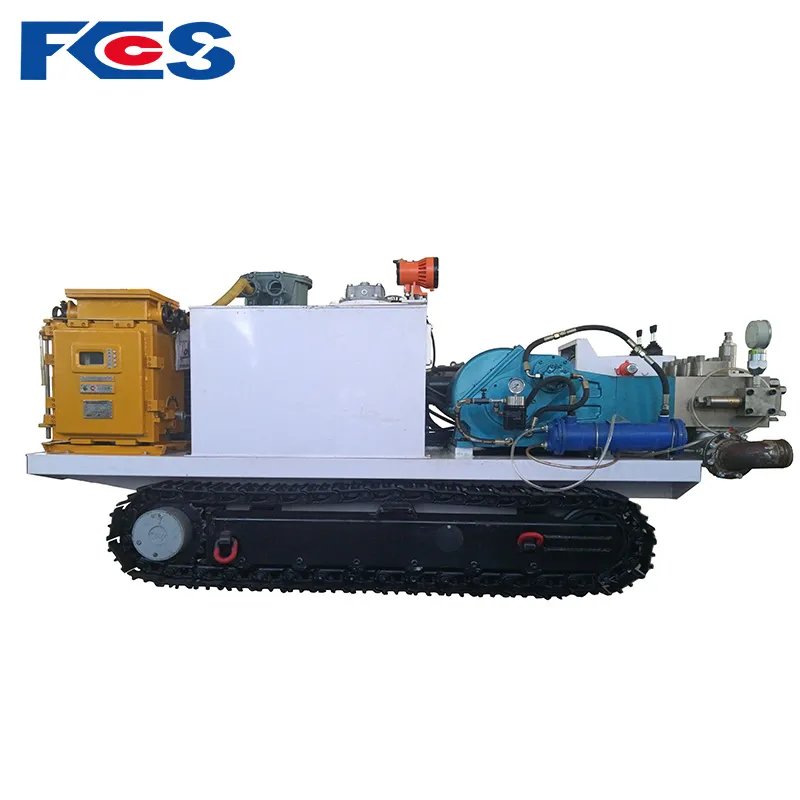

The BLY Series Tracked Mud Pump Vehicle features a compact and innovative structure, combining a high-performance mud pump with a crawler traveling system.

With excellent mobility, high efficiency, and easy maintenance, it is an ideal supporting equipment for underground coal mine operations. The unit can be used in conjunction with directional drilling rigs or independently for various pumping applications.

CONTACT NOW download to pdf

Key Features

1. Compact & Integrated Design

Innovative and compact structure
Easy installation and operation
Space-saving for underground use

2. Crawler Drive System

Tracked mobility for easy relocation
High adaptability to complex underground conditions
Improves operational efficiency

3. High Efficiency & Easy Maintenance

Reliable pumping performance
Simple structure for convenient maintenance
Reduced downtime

4. Versatile Applications

Can be used with directional drilling rigs
Suitable for multiple underground operations

Applications

1. Drilling Support

Works with directional drilling rigs
Provides slurry supply and borehole flushing

Typical Technical Specifications

Items			Unit	BLY500/10	BLY460/13	BLY420/12
Complete Machine	Rated Pressure		MPa	10	13	12
	Rated Flow Rate		L/min	500	460	420
	Noise		dB（A）	87	87	87
	Number of Cylinders			3	3	3
	Cylinder Liner (Plunger) Diameter		mm	70	70	70
	Piston (Plunger) Stroke		mm	120	120	120
	Volume Efficiency		%	≥92	≥92	≥92
	Overall Efficiency		%	≥84	≥84	≥84
	Starting Current		A	690/400	690/400	690/400
	Dimensions		mm	3400×1300× 1600（±50）	3400×1300× 1600（±50）	3400×1300× 1600（±50）
Traveling Mechanism	Travel Method			Tracked type	Tracked type	Tracked type
	Braking Type			Fail-safe brake type	Fail-safe brake type	Fail-safe brake type
	Operating Pressure		MPa	30	30	30
	Operating Flow Rate		L/min	50	50	50
	Travel Speed		m/min	30	30	30
	Climbing Ability		°	土 16	土 16	土 16
	Track Shoe Width		mm	250	250	250
Hydraulic Pump Station	Rated working pressure		MPa	30	30	30
	Maximum working flow rate		L/min	300	300	300
	Electric motor	Model Number		YBK3-315M-4	YBK3-315M-4	YBK3-315M-4
		Rated Current	A	139/80.2	139/80.2	116.1/67.0
		Rated Power	KW	132	132	110
		Rated Voltage	V	660/1140	660/1140	660/1140
		Rated Speed	r/min	1485	1485	1485
	Oil pump	Rated Pressure	Mpa	31	31	31
	Oil pump	Displacement	ML/R	130/130	130/130	130/130

Key Advantages for Buyers

✔ Pump + mobility in one machine
✔ Improves drilling efficiency
✔ Reduces labor and transport time
✔ Suitable for underground environments
✔ Flexible and reliable
