CMQ2 Roof Cutting Drilling Rig for Coal Mine

Advanced Drilling Equipment for Roof Cutting and Pressure Relief

The CMQ2 Roof Cutting Drilling Rig is a specialized drilling machine designed for advanced underground coal mining technologies such as roof cutting and pressure relief.

It is mainly used for directional drilling of roof cutting holes, enabling efficient strata control and supporting non-pillar mining methods. The rig significantly improves mining safety, reduces roadway deformation, and enhances resource recovery.

CONTACT NOW download to pdf

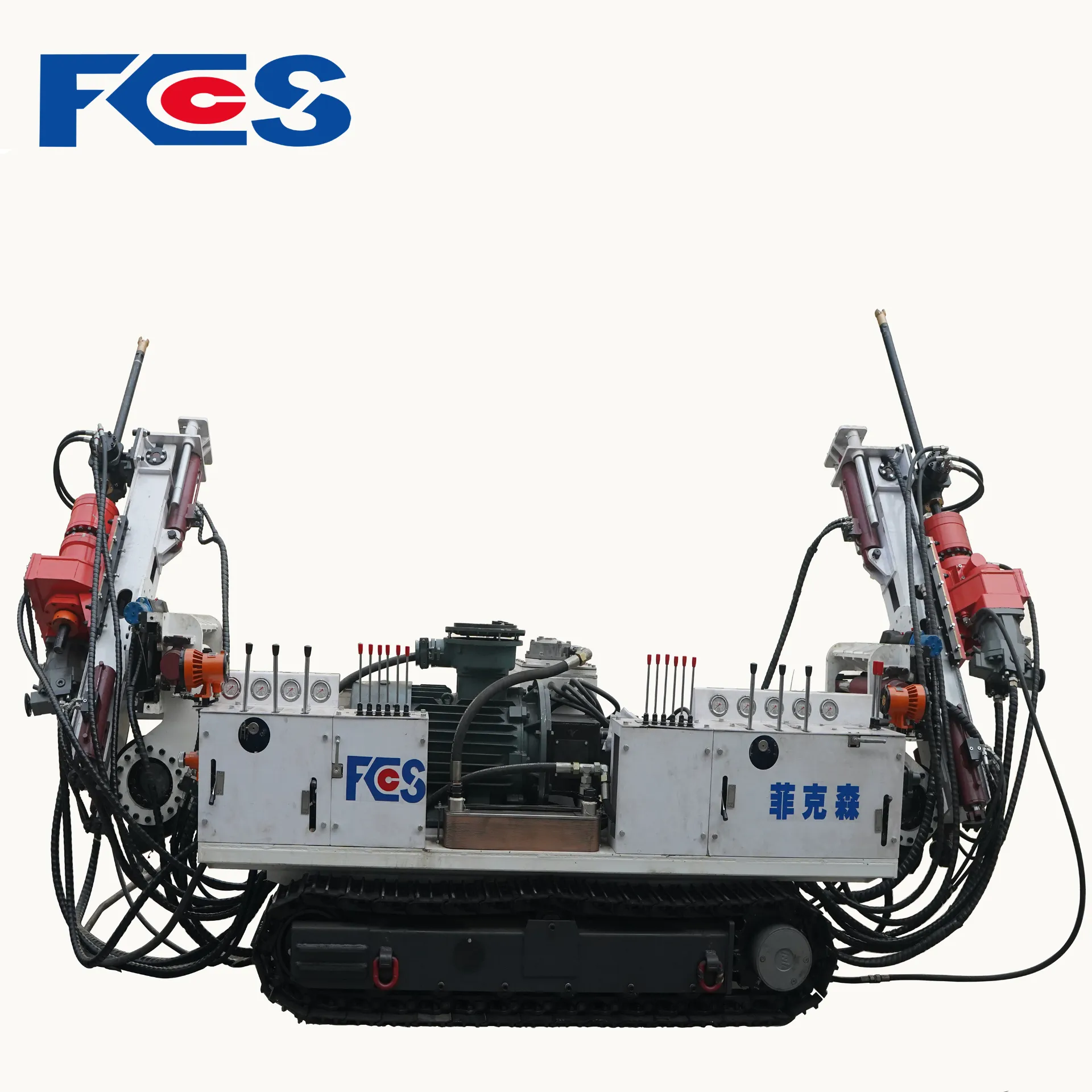

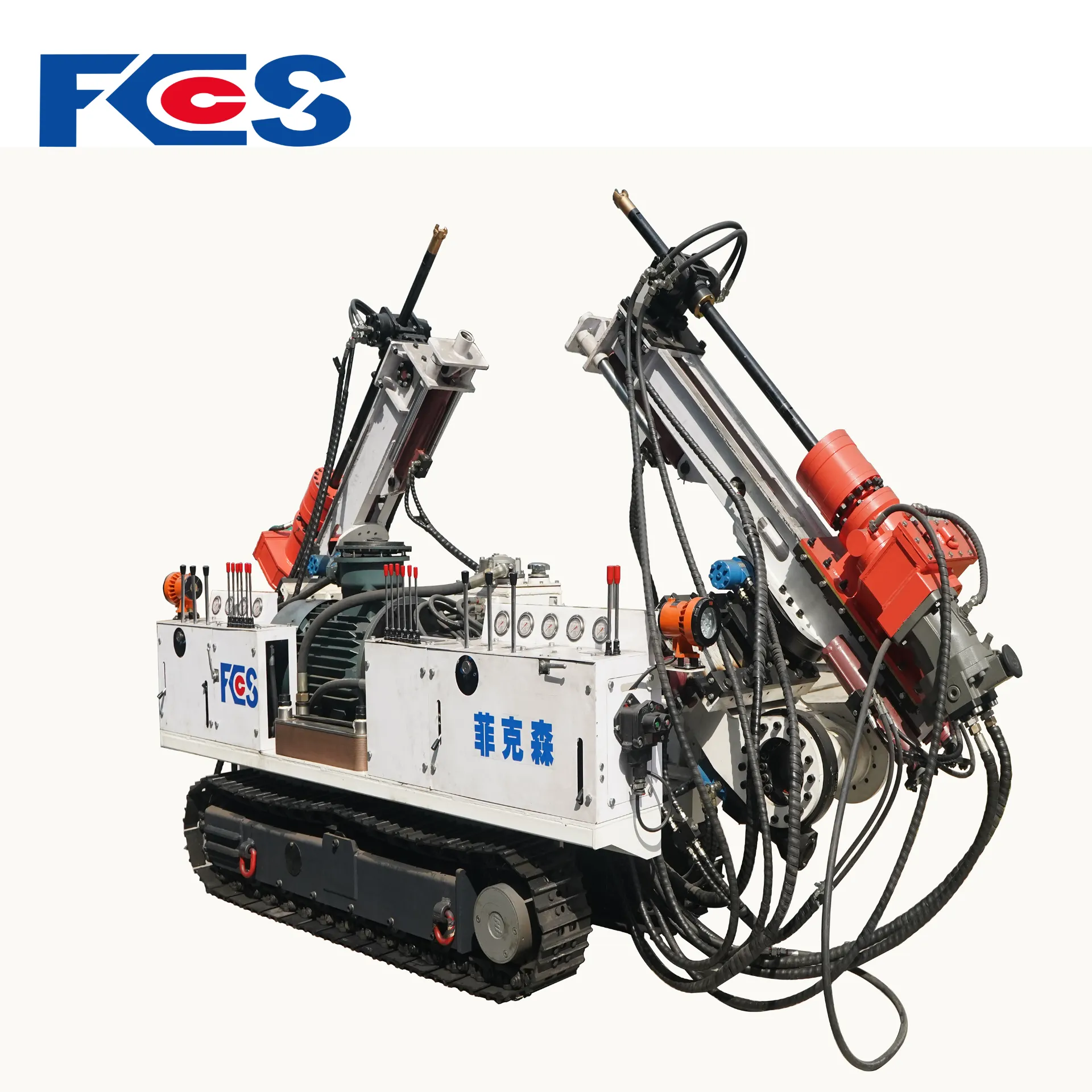

The double-arm coal mine roof-cutting drilling rig is a new generation of tracked roadway roof-cutting drilling equipment, capable of 360° vertical pitch angle all-around roof-cutting operations. This machine is mainly used for the construction of blasting holes and other engineering holes in underground roof-cutting, pressure-relief, and automatic roadway-forming technology. It is suitable for various coal seams and rock formations with a rock strength coefficient <F14. The equipment has a compact structure, flexible operation, good mobility, and simple operation when positioning and cutting holes; it adopts tracked movement, has good versatility, and features multiple uses.

This drilling rig has the following advantages:

1. Safe operation, significantly reducing the physical labor intensity of workers. Suitable for construction of horizontal and inclined roadways with various cross-sections;

2. Compact structure, fully hydraulic control, convenient and flexible operation, tracked movement, convenient relocation, good mobility, saving time and effort;

3. The drilling rig's power head has high torque and long stroke, resulting in high drilling efficiency and greatly improving operational efficiency;

4. The hydraulic system is equipped with a rapid propulsion function, saving more than twice the time for loading and unloading drill rods. It is equipped with a component for loading and unloading drill pipes, reducing the labor intensity of operators.

5. It adopts a variable displacement system, with high no-load speed and gradually increasing torque as the load changes, making drilling more efficient.

Applications

Roof cutting drilling
Pressure relief drilling
Gob-side entry retaining
Advanced coal mining operations
Geological control drilling

Typical Technical Specifications

Items		Unit	CMQ2-3200/55	CMQ2-2800/55	CMQ2-2500/55
Complete Machine	Number of Drill Booms	——	2
	Dimensions (LWH)	mm	450012002200（±50）
	Drill Tool Compatibility	mm	42~73
	Drill Weight	kg	6200
	Drill Power	kw	55
Slewing mechanism	Rated Torque	N·m	2800	2500	2000
	Rated Speed	r/min	80	90	100
	Maximum Torque	N·m	3200	2800	2500
	Speed at Maximum Torque	r/min	65	80	90
Travel mechanism	Travel Speed	m/min	30
Travel mechanism	Gradeability	（°）	±16°
Thruster	Thrust/Pulling Stroke	mm	650
Thruster	Thrust/Pulling Force	KN	85/95

Items		Unit	CMQ2-2250/45	CMQ2-2000/45	CMQ2-1700/37	CMQ2-1350/37
Complete Machine	Number of Drill Booms	——	2
	Dimensions (LWH)	mm	450012002200（±50）
	Drill Tool Compatibility	mm	42~73
	Drill Weight	kg	6100		6000
	Drill Power	kw	45		37
Slewing mechanism	Rated Torque	N·m	1800	1600	1350	1000
	Rated Speed	r/min	115	125	140	160
	Maximum Torque	N·m	2250	2000	1700	1350
	Speed at Maximum Torque	r/min	65	80	90
Travel mechanism	Travel Speed	m/min	30
Travel mechanism	Gradeability	（°）	±16°
Thruster	Thrust/Pulling Stroke	mm	650
Thruster	Thrust/Pulling Force	KN	85/95

Key Advantages for Buyers

✔ Specialized for roof cutting technology
✔ Improves mining safety and efficiency
✔ Supports advanced mining methods
✔ High precision and reliability
✔ Reduces operational costs
