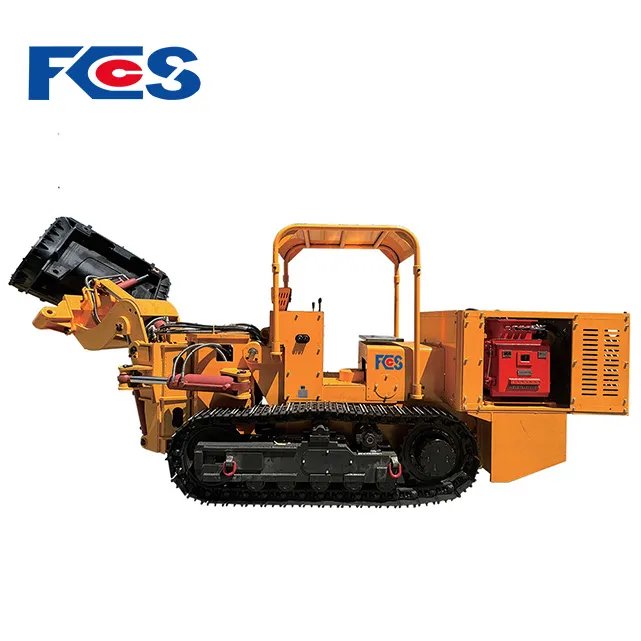

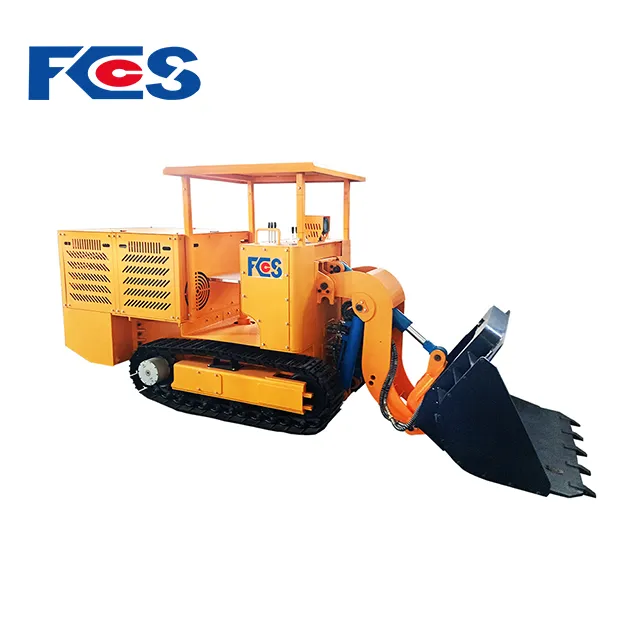

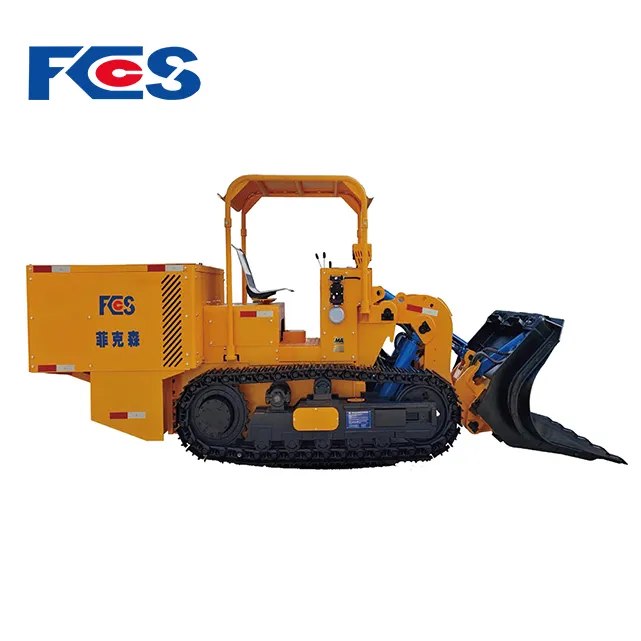

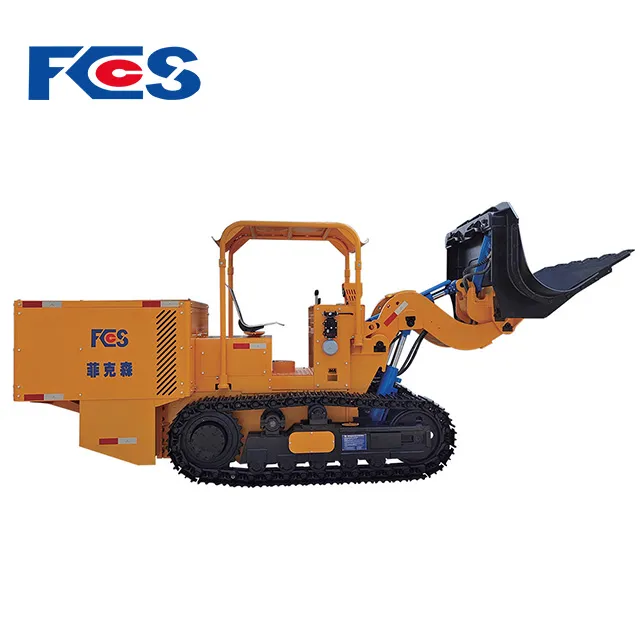

ZCY45R Side Dump Rock loader is a tracked, trackless loading device primarily used in coal and semi-coal-rock roadways, and can also be used in small-section full-rock roadways for loading coal, rock, and other materials. This product features high insertion force, good maneuverability, full-section operation, high safety, and multi-purpose functionality. In addition to loading operations, it can also serve as a working platform during support work, facilitating short-distance transport, bottom-level work, and sidewall cleaning.
Key Features
1. Side Dumping Structure
- Side discharge design for flexible unloading; Suitable for narrow and low-height tunnels; Easy to match with belt conveyors or mine cars.
2. High Loading Efficiency
-
Continuous loading and conveying operation;Reduces manual labor; Improves working efficiency.
3. Compact & Flexible Design
-
Small footprint for confined spaces;Easy maneuverability in underground roadways;Suitable for complex working conditions.
4. Hydraulic Drive System
Stable and reliable performance; Smooth operation; Low maintenance requirements
5. Durable & Safe
Heavy-duty structure for harsh mining environments; Explosion-proof design available; Long service life
Applications
-
Underground coal mine roadway loading
-
Tunnel excavation projects
-
Rock and coal material handling
- Narrow roadway operations
Typical Technical Specifications
| Items | Unit | ZCY150R | ZCY135R | ZCY120R | ZCY100R | ZCY80R | ZCY60R | ZCY45R |
| Technical Bucket Capacity | m³ | 1.5 | 1.35 | 1.2 | 1 | 0.8 | 0.6 | 0.45 |
| Bucket Width | mm | 1770 | 1750 | 1480 | ||||
| Maximum Dump Height | mm | 1650 | 1550 | |||||
| Maximum Dump Angle | (°) | 55 | ||||||
| Maximum Travel Speed | m/min | 36 | 34 | |||||
| Minimum Ground Clearance | mm | 200 | 180 | |||||
| Maximum Underbed Depth | mm | 600 | ||||||
| Gradability | (°) | ±16 | ||||||
| Electric Motor Power | kW | 55 | 45 | 30 | ||||
| Machine Weight (without Oil) | kg | 9000 | 7500 | 5200 | ||||
| Overall Dimensions (L x W x H) | mm | 5100*1200*1660 | 4900*1200*1660 | 4460*1200*1550 | ||||
Contact Us
Contact us for detailed specifications, videos, and best quotation.
We provide reliable and cost-effective bolting solutions for global mining customers.
