Key Features

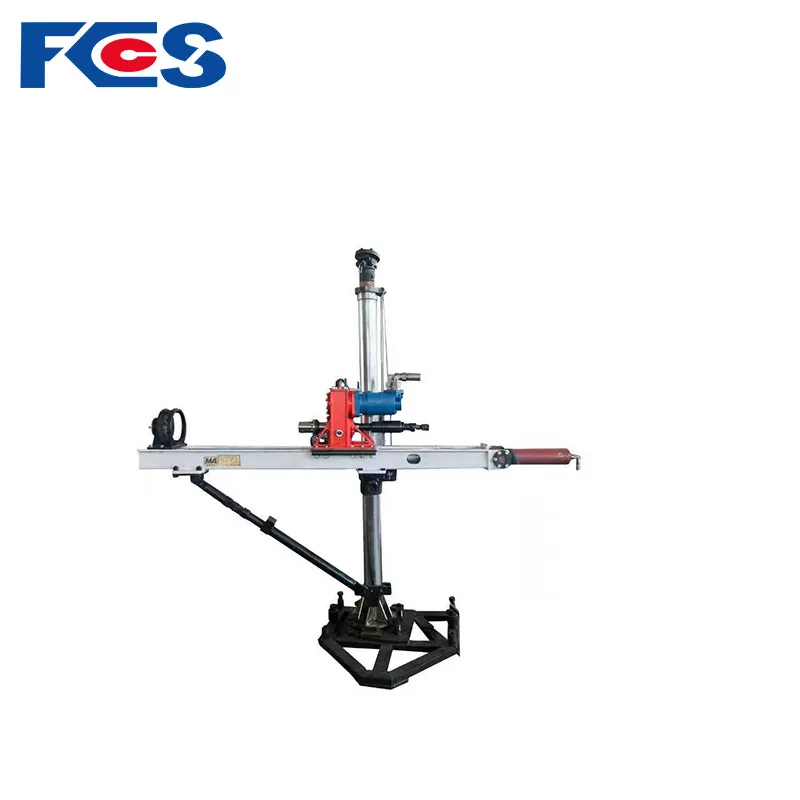

1. Split-Type Structure
- Main machine and power unit are separated
- Flexible arrangement in underground spaces
- Easy transportation and installation
2. Flexible Operation in Confined Spaces
- Suitable for narrow and complex roadways
- Can be installed in limited working areas
- Improves adaptability underground
3. Hydraulic Rotary Drilling System
- Stable rotation and smooth drilling
- Reliable performance
- Suitable for various geological conditions
4. Easy Maintenance
- Power unit separated for convenient servicing
- Reduced downtime
- Lower maintenance cost
5. Wide Application Range
- Gas drainage drilling
- Water detection drilling
- Geological exploration
- Pressure relief drilling
Applications
- Underground borehole drilling
- Coal mine gas drainage
- Confined space drilling operations
- Geological prospecting
Typical Technical Specifications
| Item | Unit | ZYJ-1350/230 | ZYJ-1250/170 | ZYJ-1100/160 |
| Rated Pressure | MPa | 23 | 23 | 21 |
| Rated Torque | N·m | 1350 | 1250 | 1100 |
| Rated Speed | r/min | 230 | 170 | 160 |
| Rated Flow | L/min | 95 | 65 | 58 |
| Feed Force (Stage 1) | kN | 35 | 35 | 35 |
| Feed Force (Stage 2) | kN | 50 | 50 | 50 |
| No-load Feed Speed | m/min | 12 | 12 | 12 |
| Return Speed | m/min | 12 | 12 | 12 |
| Feed Stroke | mm | 1200 | 1200 | 1200 |
| Guide Rail Length | mm | 2000 | 2000 | 2000 |
| Max Working Height | mm | 2100 | 2100 | 2100 |
| Min Working Height | mm | 620 | 620 | 620 |
| Machine Weight | kg | 280 | 280 | 280 |
| Flushing Water Pressure | MPa | 0.6 – 1.2 | 0.6 – 1.2 | 0.6 – 1.2 |
| Drill Hole Diameter | mm | Φ50 – Φ150 | Φ50 – Φ150 | Φ50 – Φ150 |
| Drilling Speed | mm/min | 300 | 300 | 300 |
| Noise (Sound Pressure Level) | dB(A) | 92 | 92 | 92 |
| Noise (Sound Power Level) | dB(A) | 108 | 108 | 108 |
| Dimensions (L×W×H) | mm | 2400×500×2250 (±50) | 2400×500×2250 (±50) | 2400×500×2250 (±50) |

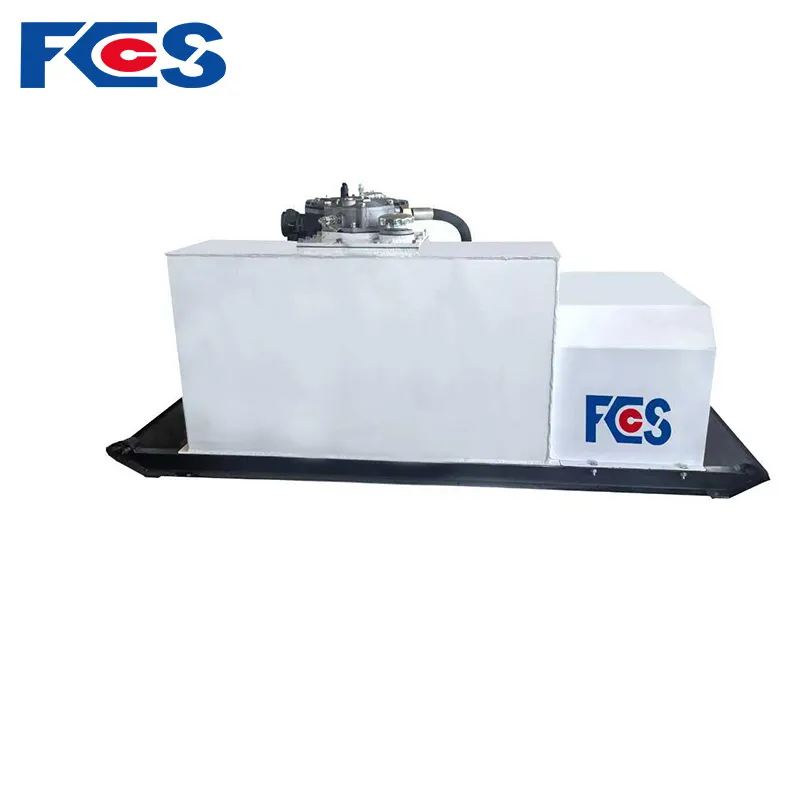

Hydraulic Power Unit Parameters
| Item | Unit | ZYJ-1350/230 | ZYJ-1250/170 | ZYJ-1100/160 |
| Rated Pressure | MPa | 24 | 24 | 22 |
| Rated Flow | L/min | 105 | 75 | 70 |
| Motor Model | — | YBK3-250M-4 | YBK3-225S-4 | YBK3-200L-4 |
| Motor Power | kW | 55 | 37 | 30 |
| Motor Voltage | V | 660 / 1140 | 660 / 1140 | 660 / 1140 |
| Motor Current | A | 60.0 / 34.6 | 40.7 / 23.5 | 33.1 / 19.1 |
| Dimensions (L×W×H) | mm | 1950×900×830 (±50) | 1800×800×800 (±50) | 1700×700×700 (±50) |
| Power Unit Weight | kg | 650 | 450 | 380 |

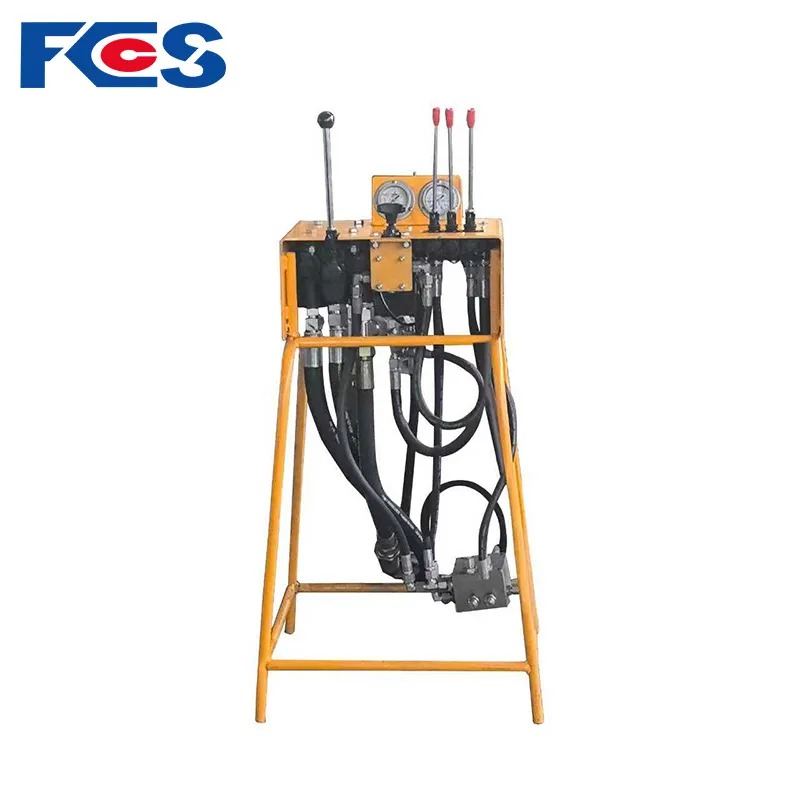

Control Console Parameters
| Item | Unit | ZYJ Series |
| Console Weight | kg | 40 |
| Dimensions (L×W×H) | mm | 570×560×1200 (±20) |
Key Advantages for Buyers
- ✔ Flexible installation in confined spaces
- ✔ Easy transportation and relocation
- ✔ Stable and efficient drilling performance
- ✔ Cost-effective and easy maintenance
Contact Us
Contact us for detailed specifications, videos, and best quotation.
We provide reliable and cost-effective bolting solutions for global mining customers.
