WCL Explosion-Proof Diesel Tracked Transporter (Remote Control)

Remote-Control Underground Crawler Carrier for Hazardous Mining Environments

Product Overview

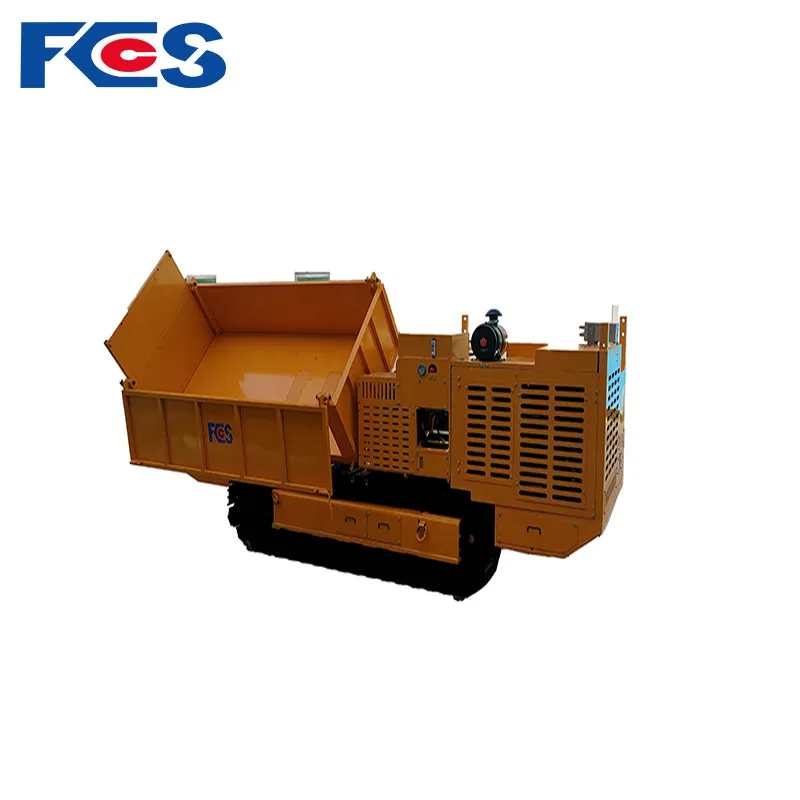

The WCL Explosion-Proof Diesel Tracked Transporter (Remote Control Type) is a heavy-duty underground vehicle designed for safe material and equipment transport in hazardous mining environments.

Equipped with an explosion-proof diesel engine and a wireless remote control system, it allows operators to control the machine from a safe distance, significantly reducing risks in high-gas or dangerous underground conditions.

CONTACT NOW download to pdf

The explosion-proof diesel-powered tracked transport vehicle (hereinafter referred to as the transport vehicle) is a tracked transport vehicle powered by an explosion-proof engine, suitable for use in explosive gas environments. This transport vehicle features electric starting and electrical protection, offering a high safety factor. In the event of an abnormality, the automatic protection device will automatically issue an alarm and cut off the oil circuit within one minute, forcing the vehicle to stop.

1) This transport vehicle uses a hydraulically driven track system, eliminating the need for a traditional gearbox transmission, ensuring reliable performance. A single lever controls the vehicle's forward, reverse, and steering movements, making operation simple and accurate.

2) The tracked design allows for ground pressure of less than 0.1 MPa, making it suitable for transporting goods in soft tunnels.

3) The vehicle has a narrow width, allowing passage in 1200/1400 mm of space, making it suitable for transporting goods in narrow tunnels.

4) The two-way driving configuration effectively solves the problems of insufficient space and difficult turning in tunnels.

5) The vehicle is equipped with a crane arm with a lifting capacity of 1000 kg, facilitating safe and convenient loading and unloading of heavy objects.

Key Features

1. Explosion-Proof Design (Core Advantage)

Explosion-proof diesel engine
Suitable for high-gas underground mines
Meets safety requirements for hazardous environments

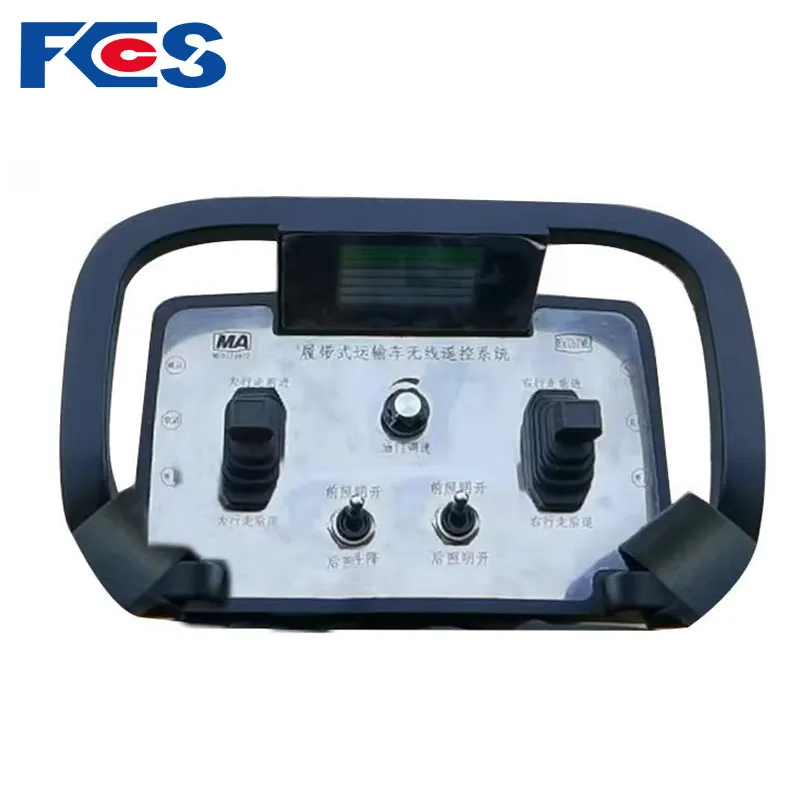

2. Wireless Remote Control System

Remote operation from a safe distance
Reduces operator exposure to risk
Improves overall safety

3. Heavy-Duty Transport Capacity

Designed for transporting heavy equipment
Strong load-bearing structure
Stable performance

4. Tracked Chassis System

Strong traction and stability
Suitable for muddy, soft, and uneven roadways
Excellent climbing ability

5. Reliable Diesel Power System

High power output
Suitable for long-distance underground transport
Stable operation in harsh environments

Applications

Underground coal mine transport
Hazardous and high-gas environments
Equipment and material transportation
Remote operation scenarios

Typical Technical Specifications

Items		Unit	WCL12.5Y	WCL10Y	WCL8Y	WCL6.5Y	WCL5Y	WCL3Y
Complete machine	Rated load capacity	kg	12500	10000	8000	6500	5000	3000
	Dimensions (L x W x H)	mm	455014002050（±50）
	Machine weight	kg	5500
	Remote control distance	m	50
	Ground clearance	mm	300
	Cargo box volume (L x W x H)	mm	20001250560（±50）
Boom	Rated lifting capacity	kg	3000
	Arm swing angle	(°)	±90
	Maximum lifting height	mm	2800±20
Travel mechanism	Travel speed (high/low)	m/min	62/30
	Gradeability	(°)	±16
	Track shoe width	mm	260

Key Advantages for Buyers

✔ Safe operation in hazardous environments
✔ Remote control reduces risk
✔ High load capacity for heavy transport
✔ Reliable performance underground
