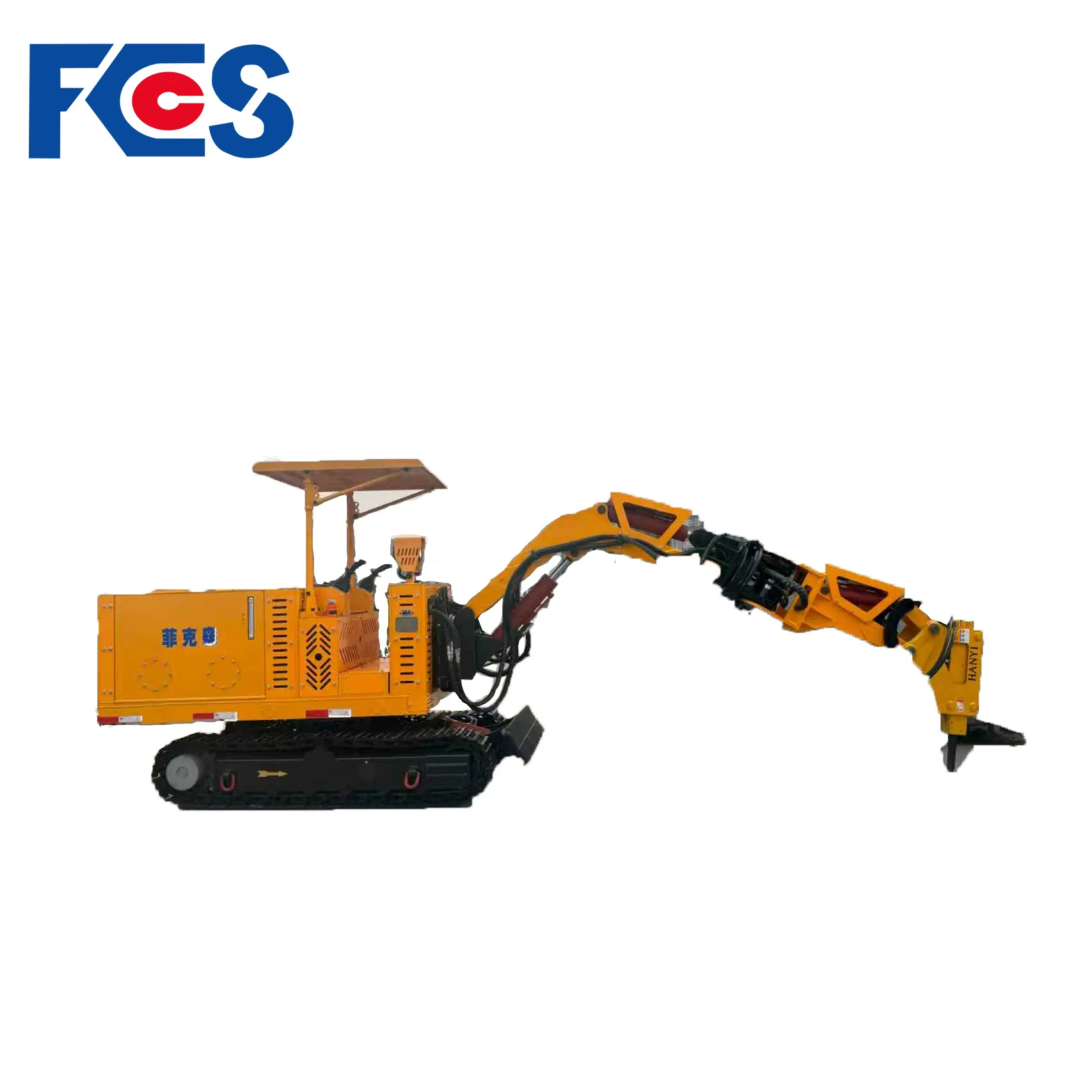

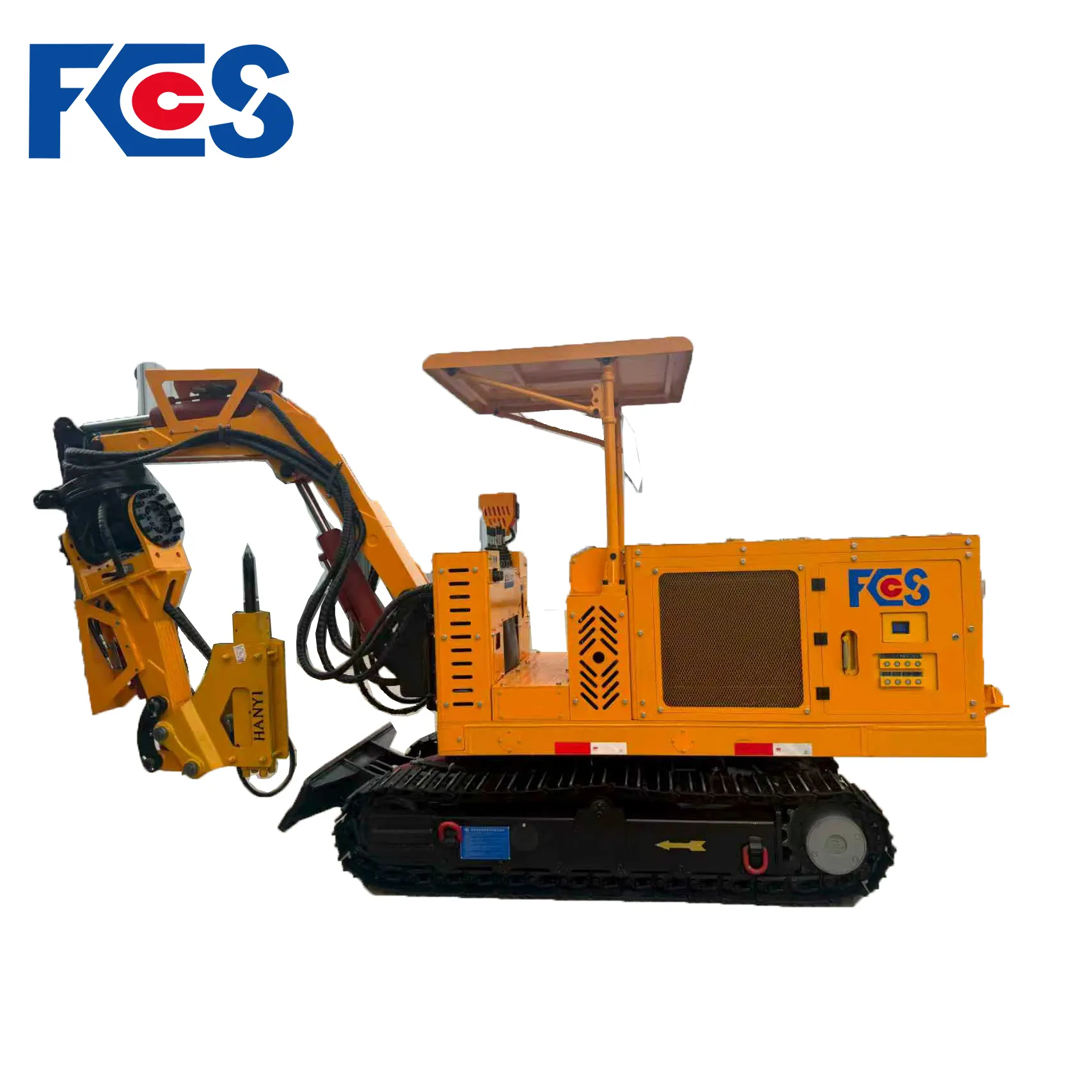

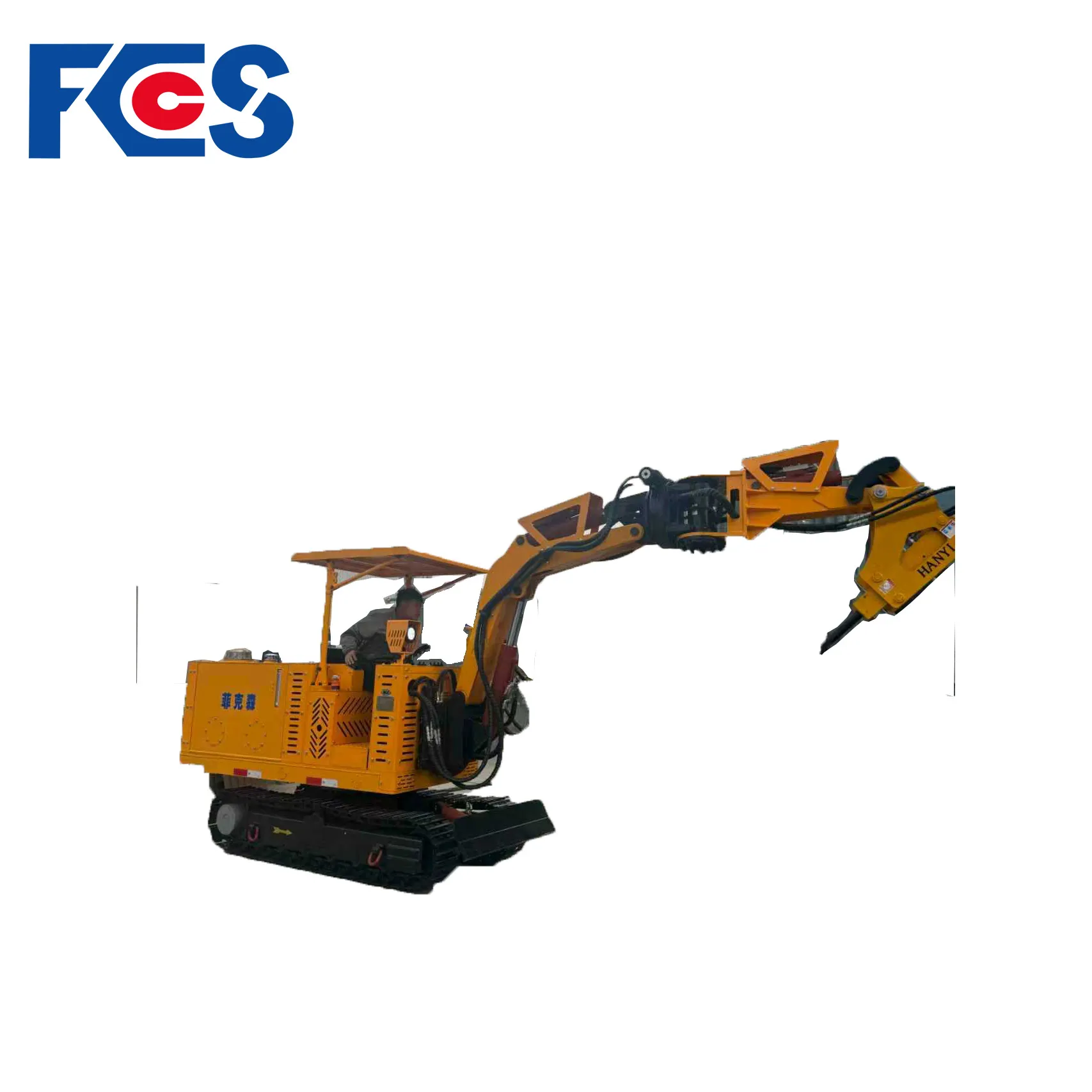

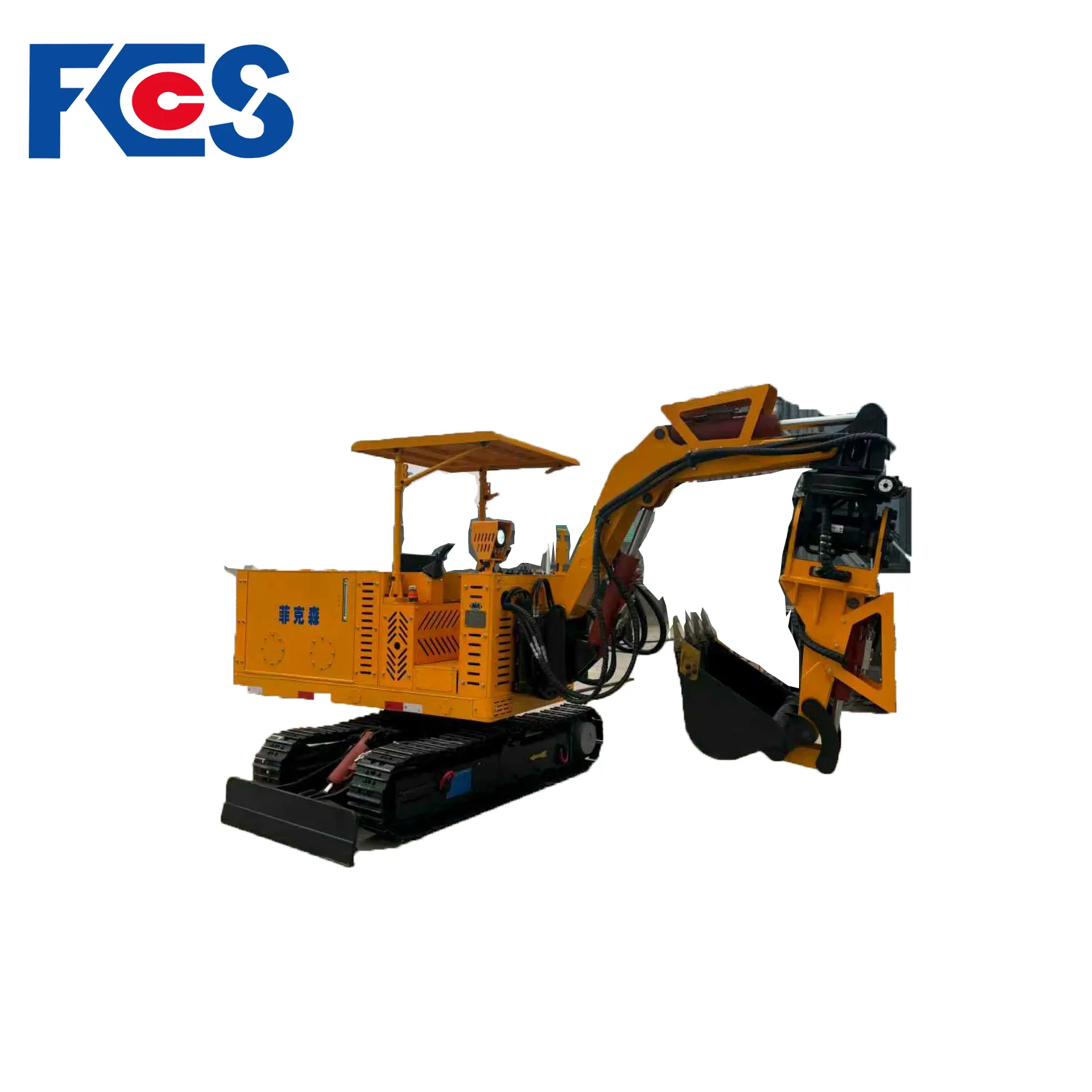

WPZ Roadway Repair & Mucking Machine for Coal Mine

Multi-Function Underground Machine for Breaking, Loading & Roadway Maintenance

Product Overview

The WPZ Roadway Repair & Mucking Machine is a multifunctional underground equipment designed for roadway maintenance and material handling in coal mines.

It integrates breaking, excavation, loading, leveling, and cleaning functions into one machine, replacing traditional manual operations and significantly improving efficiency.

CONTACT NOW download to pdf

Coal mine crushing and loading undercarriage machines are mainly used in coal roadways, semi-coal-rock roadways, and full-rock roadways. They can perform routine maintenance operations such as crushing, excavating, loading, and shoveling on the roof, floor, and sidewalls of the roadway. They can also crush large pieces of rock and coal for loading and transportation.

The coal mine crushing and loading undercarriage machine can perform multiple functions such as roadway repair, undercarriage work, and small-scale earthwork construction. Its operating conditions are as follows:

1. Roadway environment: -5℃～+40℃, maximum relative humidity ≤90%, suitable temperature 25℃;

2. Altitude ≤1000m. For plateau environments above 1000m, necessary measures should be taken as appropriate;

3. Voltage limit deviation: ±5%, AC frequency limit deviation: ±1%;

4. During operation, the coal dust and methane explosive gases in the surrounding air must not exceed the safe levels specified in the "Coal Mine Safety Regulations";

5. Rock Protodyakonov hardness f ≤ 12, loose density not greater than 1.8t/m³.

Typical Technical Specifications

Items		Unit	WPZ-11/300	WPZ-8/100	WPZ-7/90	WPZ-4/80
Complete Machine	Installed Power	kg	55	45	45	22
	Machine Weight	kg	8100	6000	6000	4500
	Operating Dimensions (LWH)	mm	680012002000(±50)	550012002000(±50)	550012002000(±50)	500010002000(±50)
Travel Mechanism	Travel Speed	m/min	20	20	20	20
Travel Mechanism	Gradability	（°）	±16	±16	±16	±16
Bucket	Bucket Capacity	L	300	100	90	80
	Dumping Height	mm	3500	2000	2000	1500
	Maximum Underground Depth	mm	1700	1500	1500	12000
Breaker	Impact Energy	J	1000	620	390	200

Key Advantages for Buyers

✔ Multi-function machine reduces equipment investment
✔ Improves underground maintenance efficiency
✔ Replaces manual labor operations
✔ Suitable for various underground tasks
