WCL Explosion-Proof Diesel Tracked Transporter

Underground Mining Tracked Transport Vehicle for Material & Equipment Handling

Product Overview

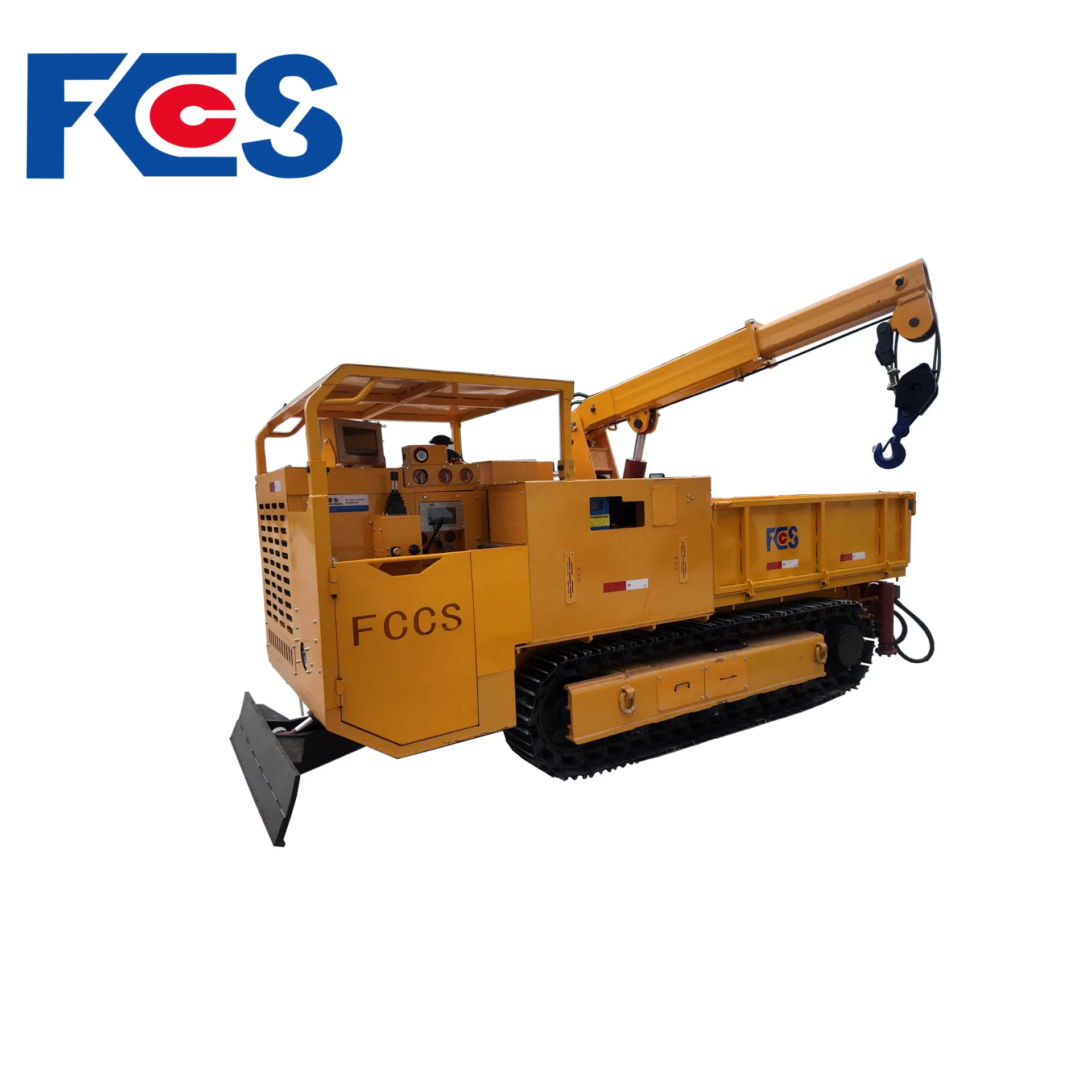

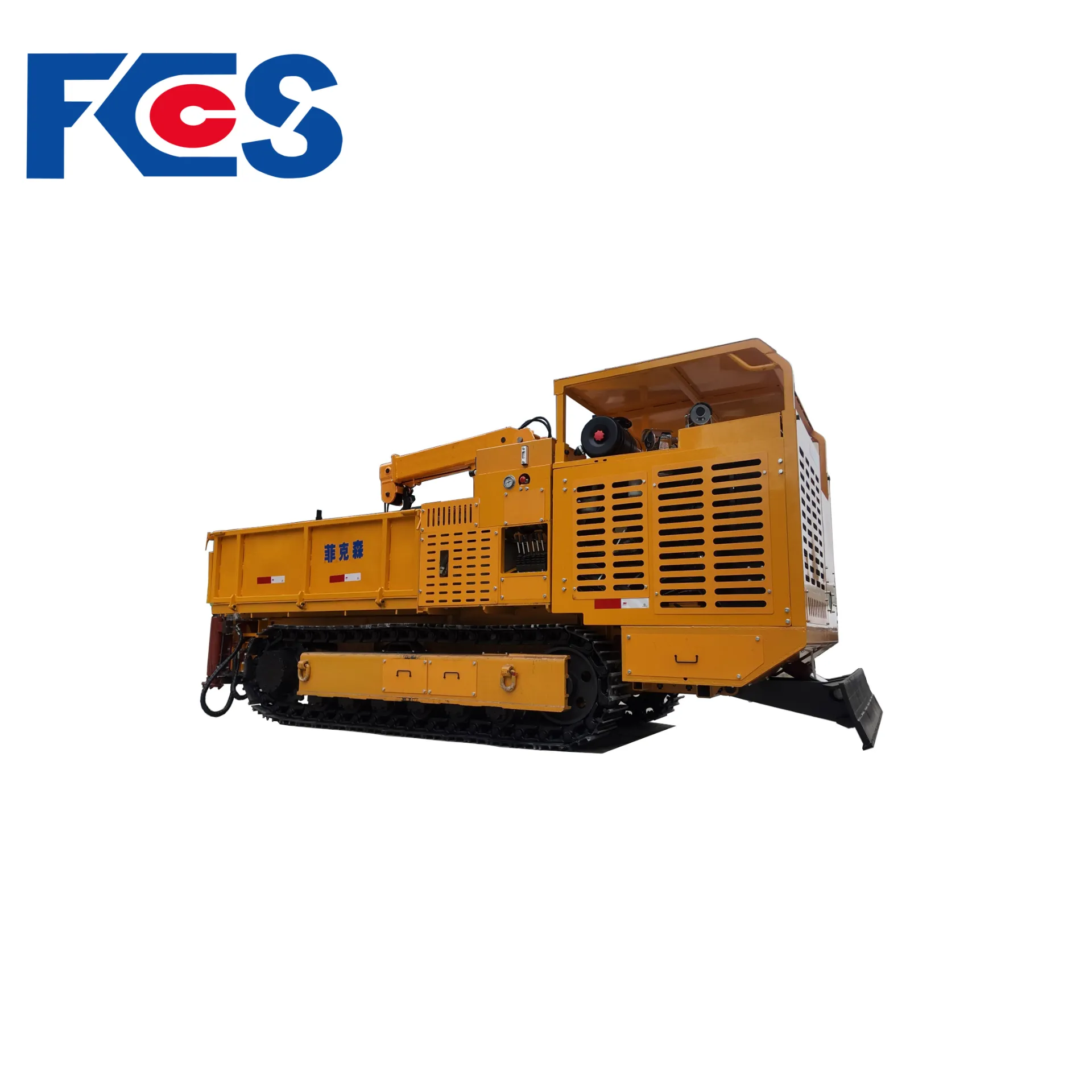

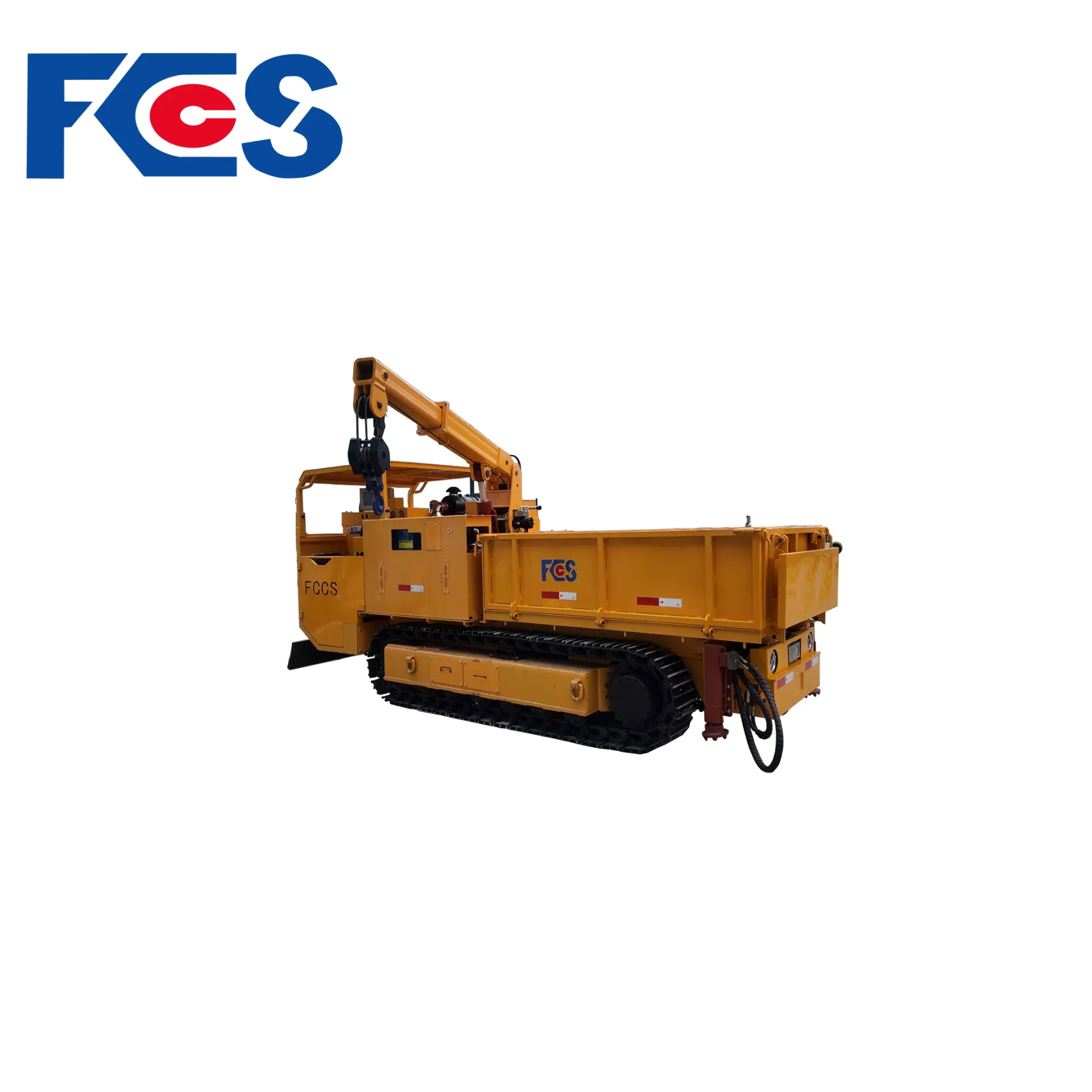

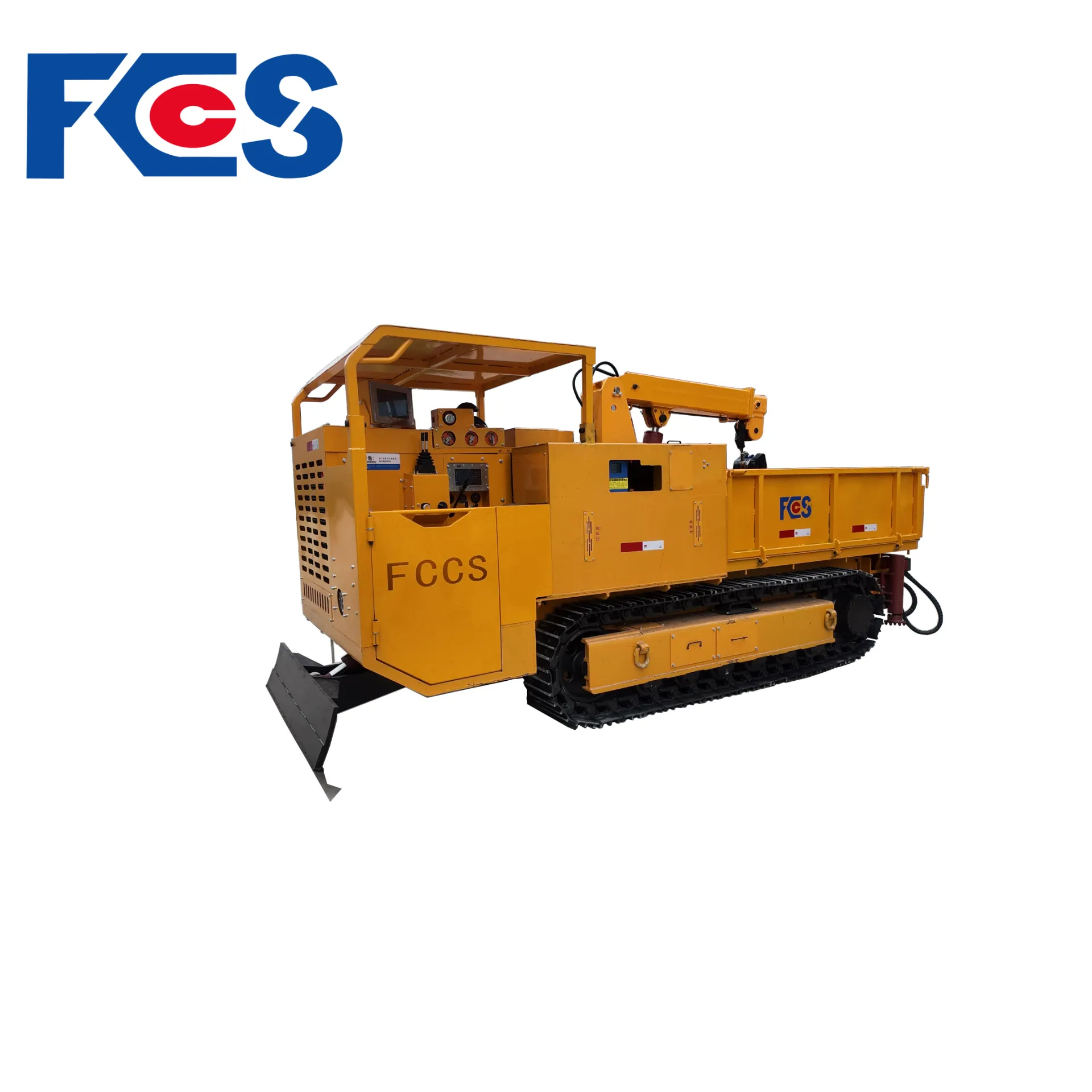

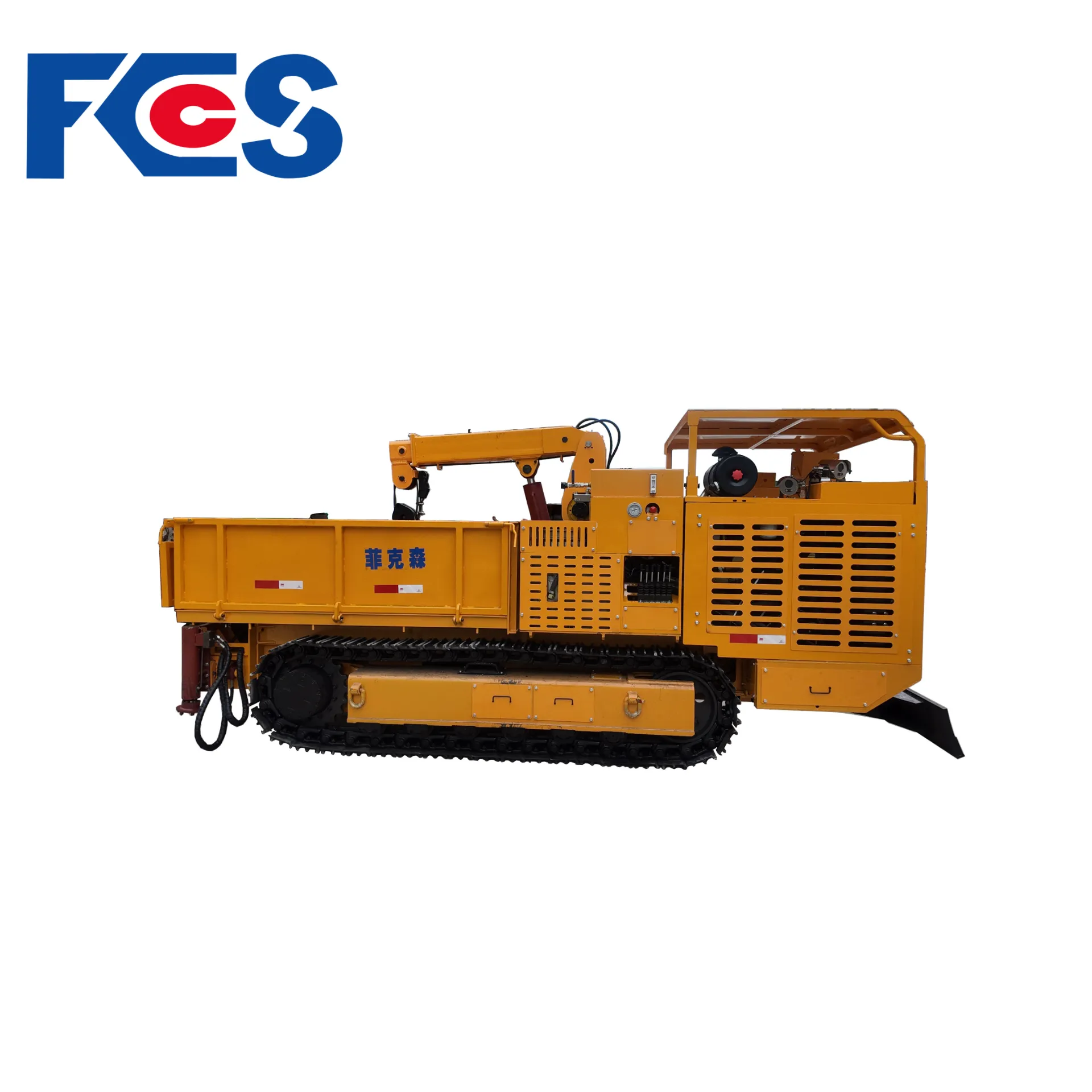

The WCL Explosion-Proof Diesel Tracked Transporter is a heavy-duty underground vehicle designed for safe and efficient transportation of materials, equipment, and personnel in coal mines.

Equipped with an explosion-proof diesel engine and a tracked chassis, it offers excellent mobility, strong traction, and reliable performance in harsh underground environments.

CONTACT NOW download to pdf

The explosion-proof diesel-powered tracked transport vehicle (hereinafter referred to as the transport vehicle) is a tracked transport vehicle powered by an explosion-proof engine, suitable for use in explosive gas environments. This transport vehicle features electric starting and electrical protection, offering a high safety factor. In the event of an abnormality, the automatic protection device will automatically issue an alarm and cut off the oil circuit within one minute, forcing the vehicle to stop.

1) This transport vehicle uses a hydraulically driven track system, eliminating the need for a traditional gearbox transmission, ensuring reliable performance. A single lever controls the vehicle's forward, reverse, and steering movements, making operation simple and accurate.

2) The tracked design allows for ground pressure of less than 0.1 MPa, making it suitable for transporting goods in soft tunnels.

3) The vehicle has a narrow width, allowing for passage in 1200/1400 mm of space, making it suitable for transporting goods in narrow tunnels.

4) The two-way driving configuration effectively solves the problems of insufficient space and difficult turning in tunnels.

5) The vehicle is equipped with a crane arm with a lifting capacity of 1000 kg, facilitating safe and convenient loading and unloading of heavy objects.

Key Features

1. Explosion-Proof Diesel Engine

Specially designed for underground coal mine safety; Reliable performance in high gas environments; Complies with mining safety requirements

2. Tracked Chassis for Superior Mobility

Strong climbing ability; Excellent traction on soft and uneven ground; Suitable for complex underground roadways

3. High Load Capacity

Capable of transporting heavy materials and equipment; Improves transportation efficiency; Reduces manual handling

4. Compact & Flexible Design

Suitable for narrow tunnels; Small turning radius; Easy operation and maneuverability

5. Multi-Function Application

Material transport; Equipment relocation; Personnel transport (optional seating configuration)

Applications

Underground coal mines; Tunnel engineering projects; Material and equipment transportation; Auxiliary support operations

Typical Technical Specifications

Items		Unit	WCL10Y	WCL8Y	WCL6.5Y	WCL5Y	WCL3Y
Rated load capacity		kg	10000	8000	6500	5000	3000
Maximum load capacity		kg	11000	9000	8000	6000	4000
Longitudinal slope tolerance		(°)	±16
Travel speed		km/h	3.7
Starting method		——	Electric start
Maximum lifting range		(°)	±90
Engine rated power		kW	80
Operation method		——	Two-way driving
Machine weight ±5%		kg	6000
Dimensions (L x W x H)		mm	4600×1400×2100 (±100)
Lifting mechanism	Rated lifting weight	kg	1000/3000
	Lifting method	——	Vertical lifting
	Maximum lifting height	mm	3000
	Crane head rotation angle	(°)	±90

Key Advantages for Buyers

✔ Safe operation in explosive environments
✔ Strong off-road capability
✔ High transport efficiency
✔ Multi-functional design
