Confined-Space Drilling Without Drama: A Field Look at FCCS’s Pneumatic Frame Rig

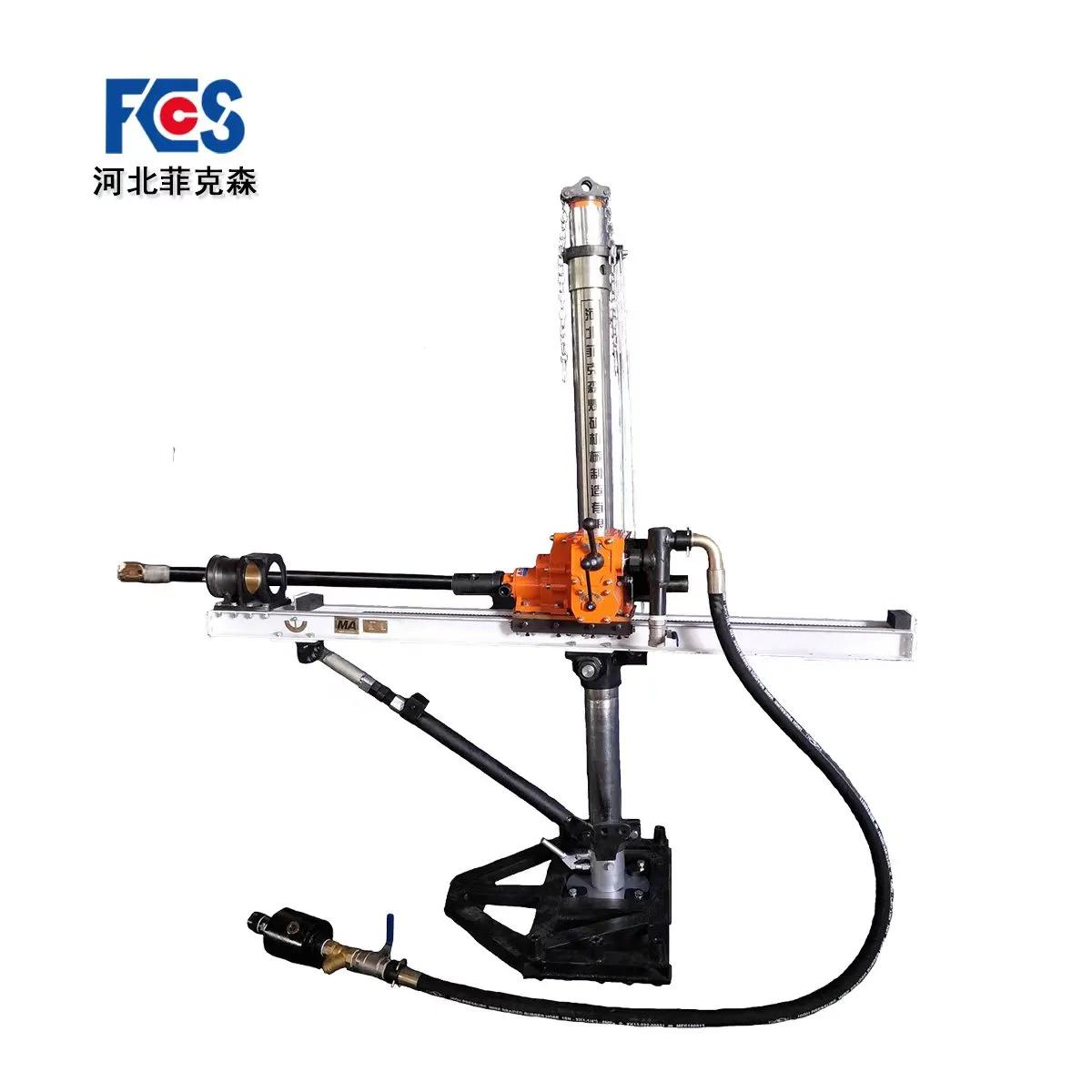

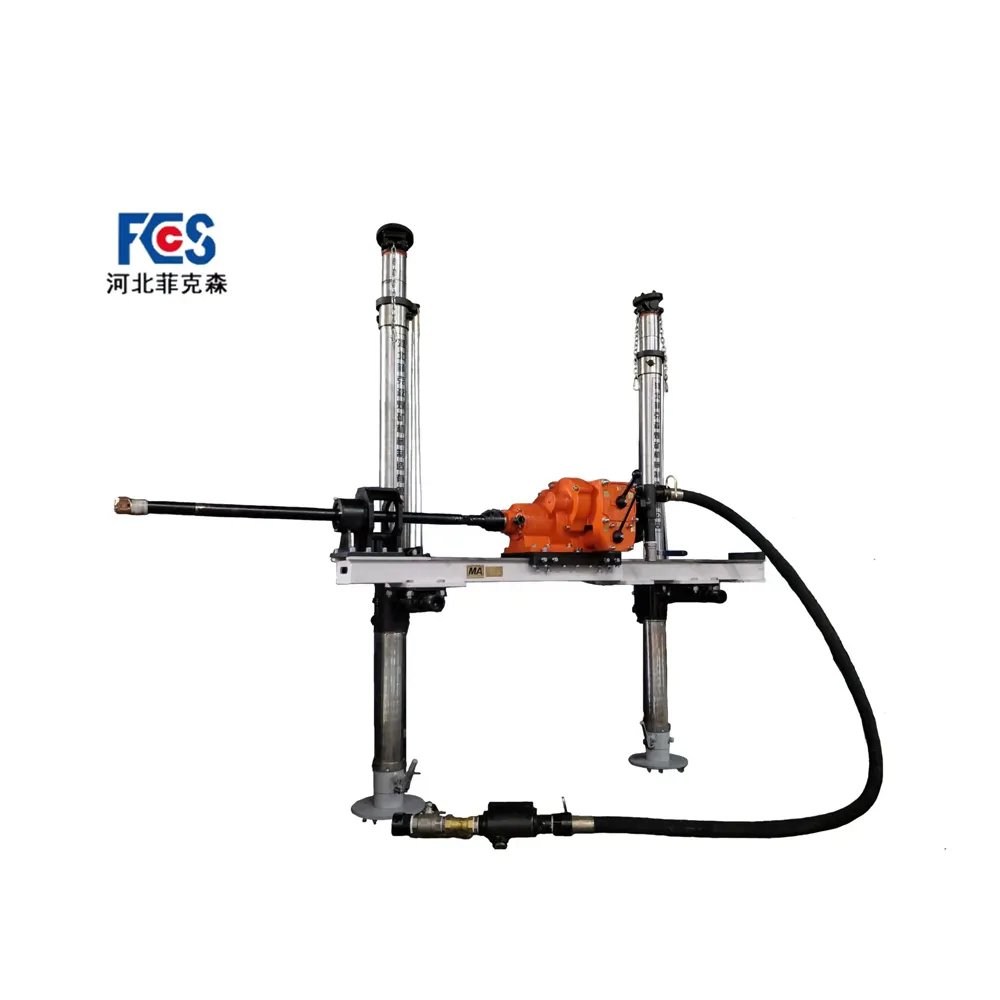

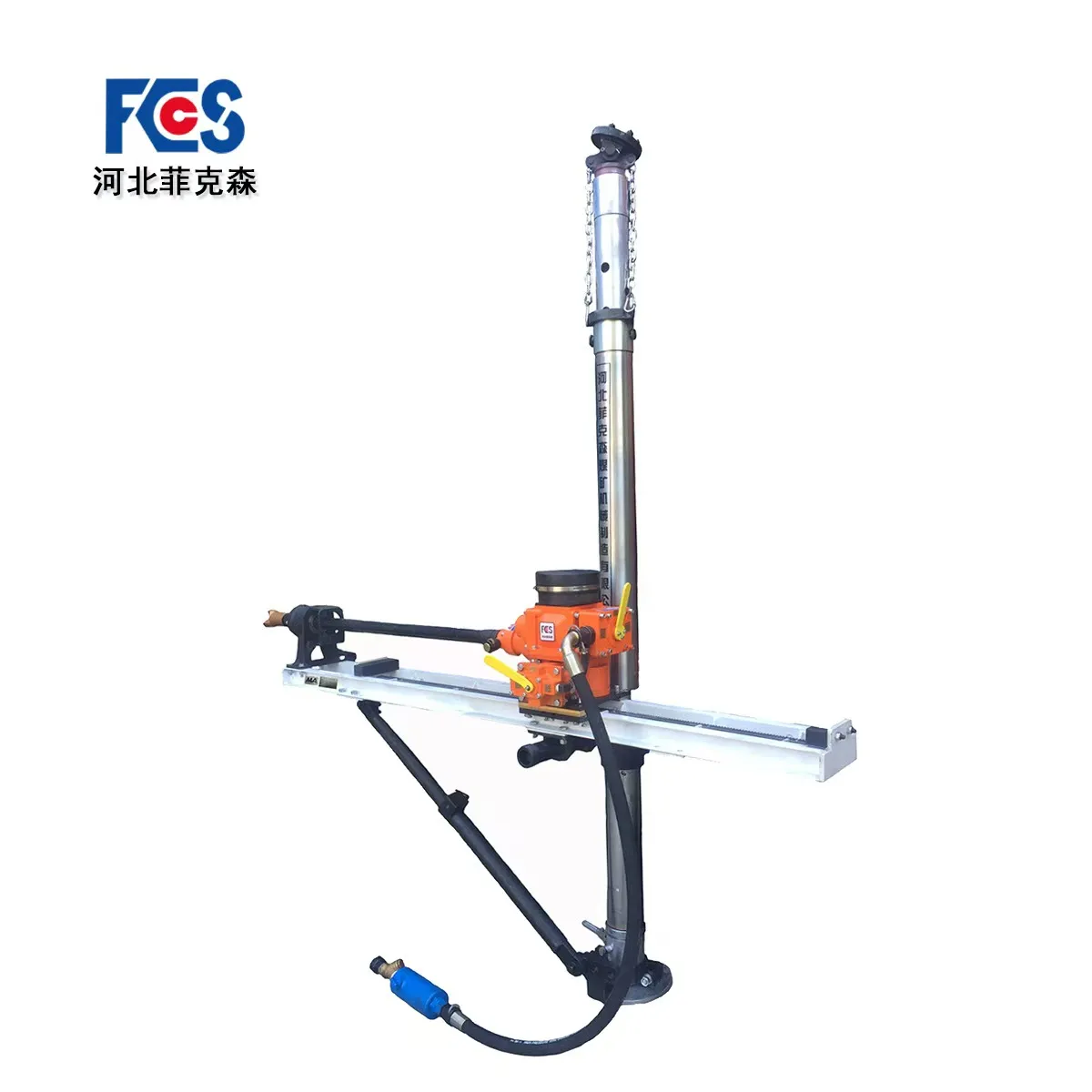

When people search for a Crawler Mounted Drill Rig, they’re often really chasing a simple goal: safe, fast holes in tight, rough, genuinely awkward places. In mines and narrow galleries, though, a crawler isn’t always the hero. I’ve watched crews squeeze FCCS Drilling’s “Drill For Confined Spaces” (model 307/2000) into headings where a crawler would just sit outside, idling and sulking. Powered by compressed air and supported by a rigid frame column, this machine uses the column to carry weight, counter-torque, and vibration—exactly the bits that usually knock operators around.

What it is, really

Originating from Shijiazhuang High-tech Industrial Development Zone, Hebei Province, the 307/2000 pneumatic frame-supported drilling rig was built for genuine underground work: water exploration and injection, pressure relief, angled exploration, and day-to-day geological probing. The company did its homework underground (you can tell from the control ergonomics), and it shows in how calmly it handles torque kickback. To be honest, that’s what won over a few skeptical shift bosses I’ve met.

Quick Product Specs (real-world use may vary)

Process Flow: From build to the heading

• Materials: high-strength alloy steel frame column; corrosion-resistant pneumatic lines; abrasion-tolerant seals.
• Manufacturing methods: precision welded frame; vibration-damping mounts; flow-optimized air passages.
• Testing standards to reference: EN 16228 (drilling equipment safety), ISO 8573-1 (compressed air quality), mine safety regs (e.g., MSHA/ATEX zones as applicable).
• Factory acceptance checks: torque reaction control (Pass), leak/pressure holding (Pass), stall protection (Pass), vibration audit at rated duty (Pass).
• Service life & maintenance: scheduled lubrication, seal inspections; periodic column alignment checks; air filtration to ISO class appropriate for mine air.
• Industries: underground mining, narrow-vein operations, tunneling access drifts, geotechnical probing in constrained sites.

Why not a Crawler Mounted Drill Rig here?

Crawler rigs excel topside and in roomy tunnels. In tight headings, however, crews often prefer this framed pneumatic approach: smaller footprint, fewer fumes, simpler reaction management. Many customers say setup is quicker and less “wrestling” with torque. The trade-off? You won’t drive it between headings—fair—yet underground teams care more about getting holes in rock than driving gear around.

Vendor Comparison (condensed)

Customization and QA

FCCS can tweak column length, valve layout, and drill string interfaces. I guess the practical advice is simple: specify your air quality target (per ISO 8573-1) and confirm safety alignment with EN 16228 and local mine regulations. Ask for factory test reports—torque control, leak checks, and vibration readings. We reviewed sets marked Pass across the board on a recent production batch.

Two quick field notes

• Narrow-vein gold mine: crew used the frame column as the “quiet anchor,” drilling angled relief holes without fighting kickback; shift boss called it “less tiring, finally.”
• Water-control drift: rapid switch from exploration to injection with the same setup; surprisingly little downtime between angle changes.

Authoritative citations

1. EN 16228 — Drilling and foundation equipment — Safety, CEN.
2. ISO 8573-1 — Compressed air quality classes, ISO.
3. MSHA — Mine Safety and Health Administration regulations, U.S. Dept. of Labor.
4. Directive 2014/34/EU (ATEX) — Equipment intended for use in potentially explosive atmospheres.
5. ISO 15548 series — Non-destructive testing equipment performance (reference for QA culture in heavy equipment).
