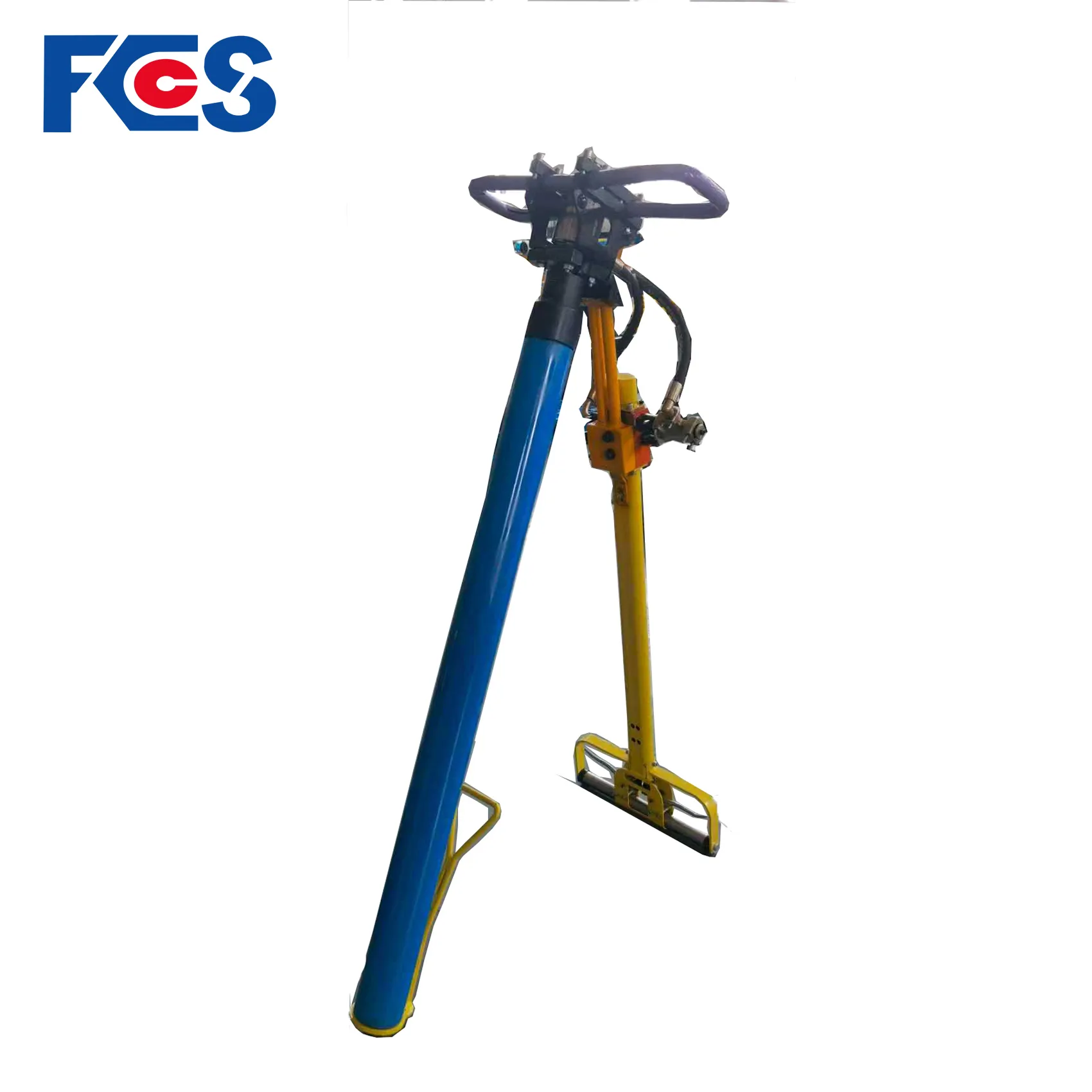

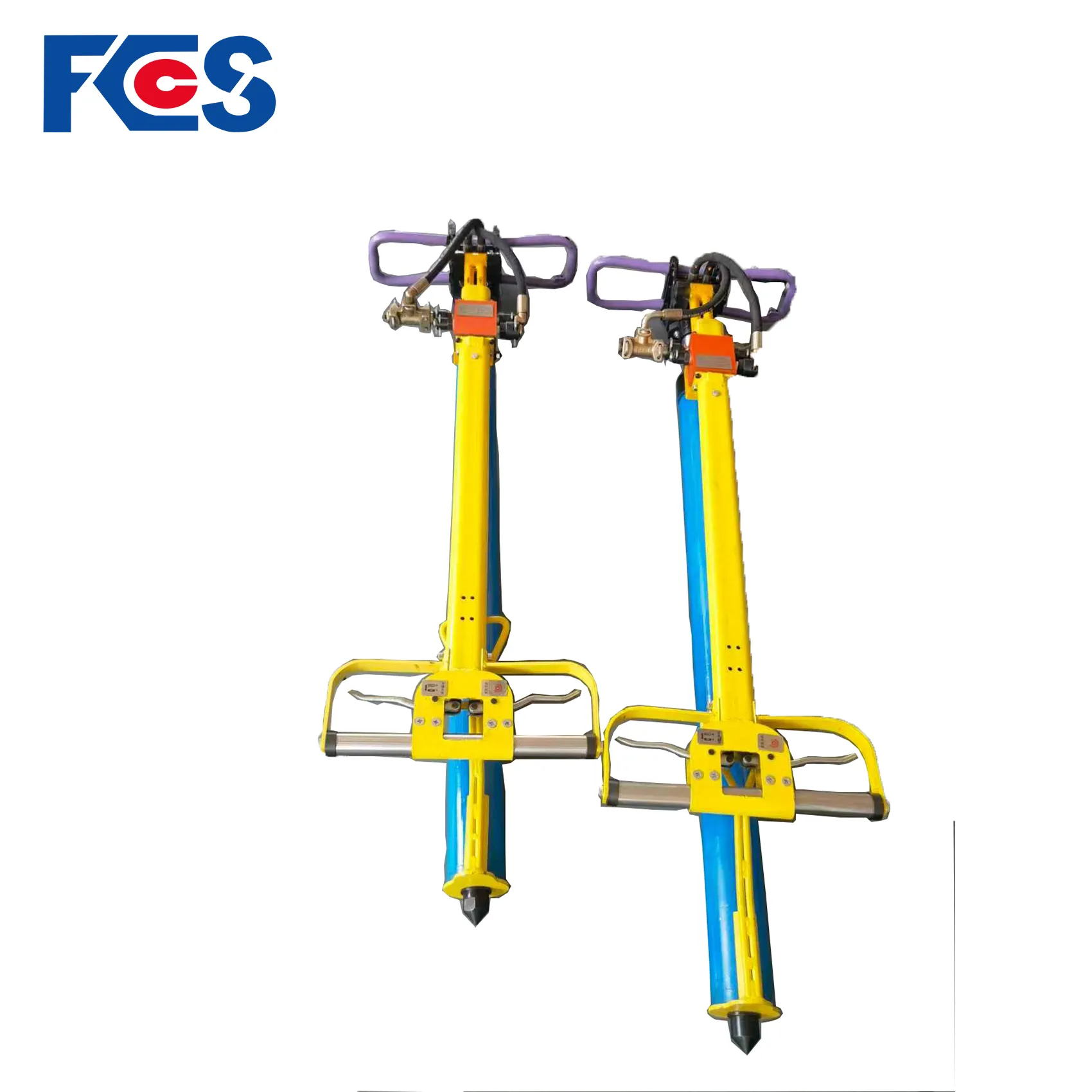

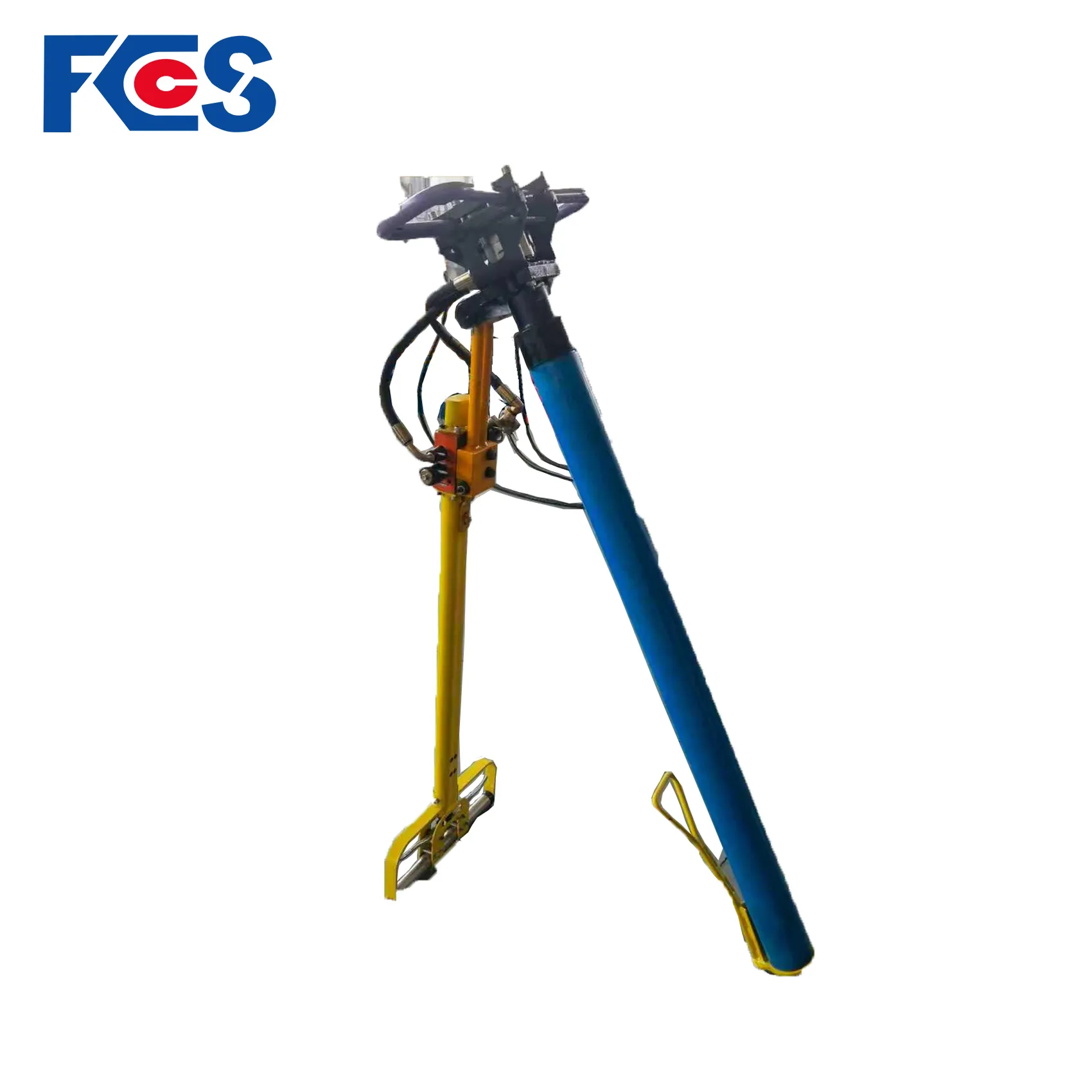

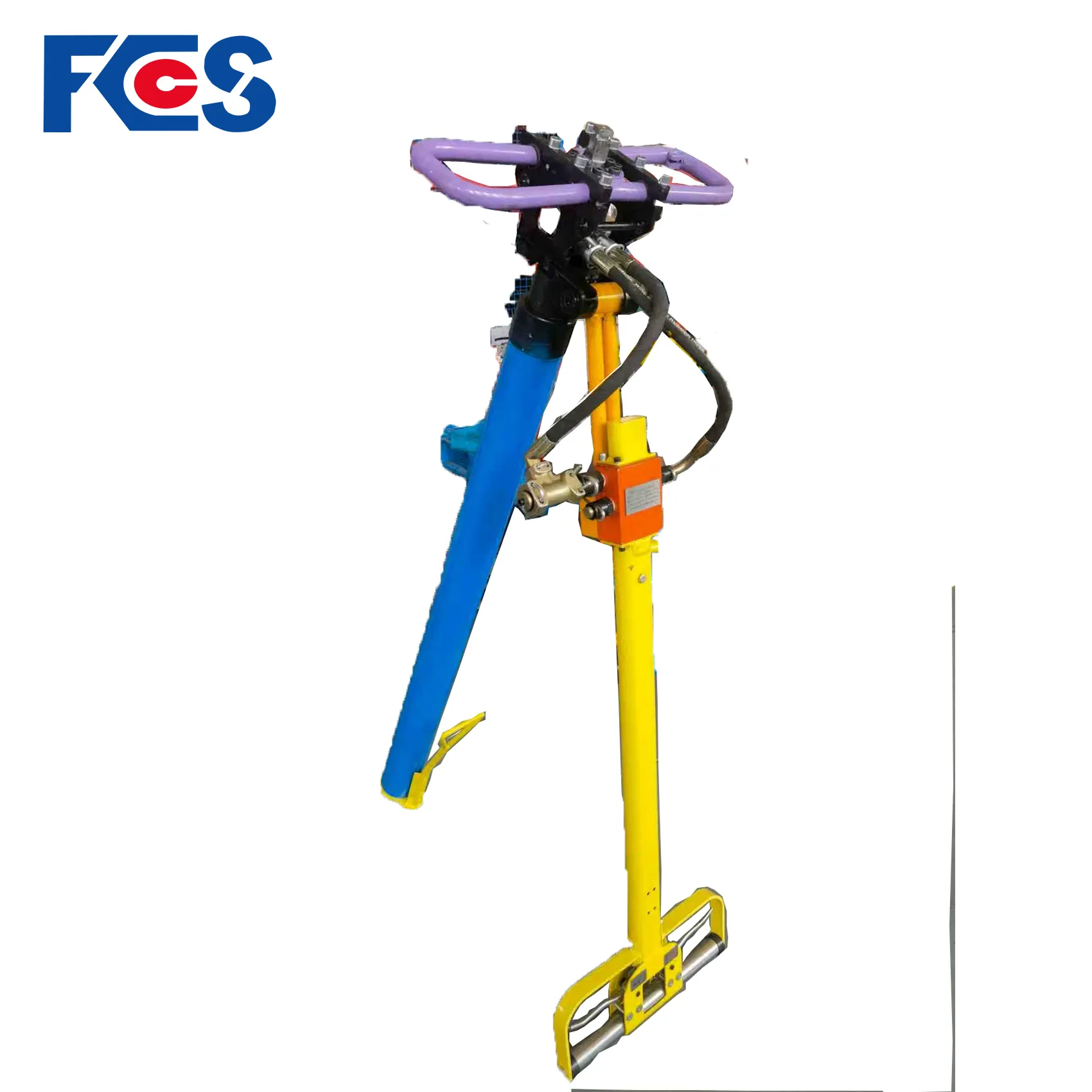

MRT Emulsion Roof Bolter (Hydraulic Anchor Drill Machine)

High-Torque Emulsion-Driven Roof Bolting Machine for Underground Mining

Product Overview

The MRT Emulsion Roof Bolter is a high-performance anchoring machine powered by an underground emulsion hydraulic system. Compared with pneumatic roof bolters, it provides higher torque, stronger thrust force, and more stable drilling performance.

It is specially designed for medium and large-scale underground coal mines, suitable for hard rock formations and continuous bolting operations. Hydraulic roof bolters typically deliver significantly higher torque output than pneumatic types, making them ideal for demanding mining conditions.

CONTACT NOW download to pdf

Structure Description

1. Hydraulic Motor & Rotation Head

High-torque emulsion motor
Stable rotation and strong drilling capability
Suitable for hard rock drilling

2. Control Valve System

Integrated hydraulic control block
Smooth speed regulation
Easy forward/reverse control

3. Telescopic Support Leg

Hydraulic-assisted feeding system
Strong thrust force
Adjustable height for different roadway conditions

4. Auxiliary Stabilizing Leg

Enhances machine balance
Improves safety during drilling

5. Handle & Operation Frame

Ergonomic dual-handle design
Easy one-person operation
Improved safety and control

Key Features

High Torque Output

Much higher than pneumatic roof bolters
Suitable for hard coal seam and rock

Stable Hydraulic System

Powered by emulsion pump station
Continuous and stable output
Lower energy loss compared to air systems

Fast Drilling Speed

Higher efficiency in large-scale mining
Reduced operation time

Integrated Bolting Function

Drilling + resin mixing + bolt installation
One machine, multiple functions

Explosion-Proof Design

Safe for underground coal mine environments

Applications

Underground coal mine roof support
Tunnel anchoring projects
Hard rock bolting operations
Large-section roadway construction

Typical Technical Parameters

Items		Unit	MRT-100/260
Main unit	Rated Pressure	MPa	27
	Rated Torque	N•m	100
	Rated Speed	r/min	260
	Dimensions (L×W×H)	mm	1640×530×250（±20）
Propulsion mechanism	Rated Pressure	Mpa	8
	Thrust Force	kN	18
	Thrust Speed	m/min	10
	Return Speed	m/min	3
	Thrust Stroke	mm	2320
	Maximum Working Height	mm	3960
	Minimum Working Height	mm	1640

Key Performance Highlights:

High torque output ensures efficient drilling in hard rock conditions
Strong thrust force improves drilling speed and stability
Wide working height range suitable for different roadway conditions

Why Choose MRT Instead of MQT

tem	MQT Pneumatic	MRT Emulsion
Power Source	Air	Hydraulic
Torque	Medium	High
Stability	Medium	High
Efficiency	Normal	High
Suitable	Small Mines	Large Mines
