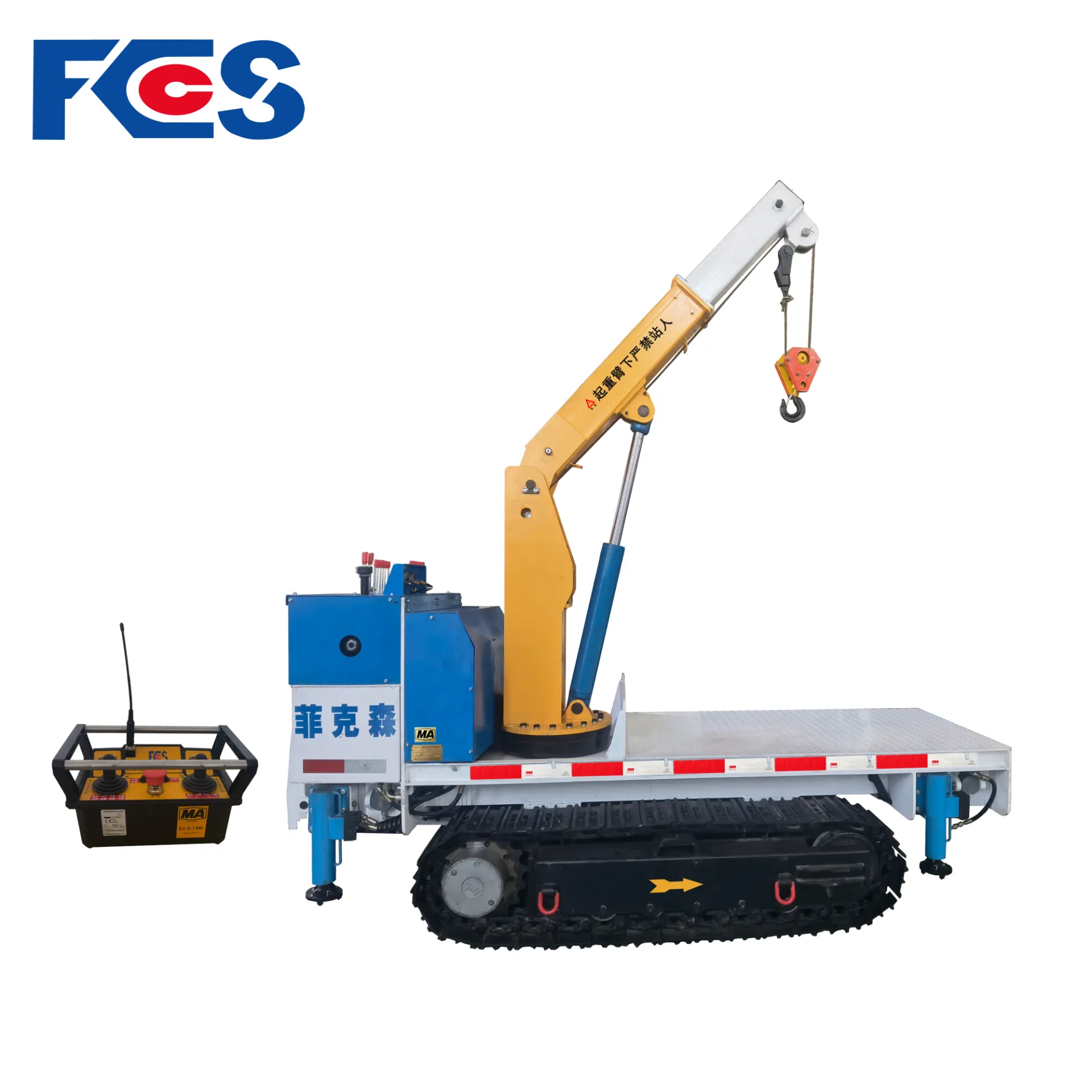

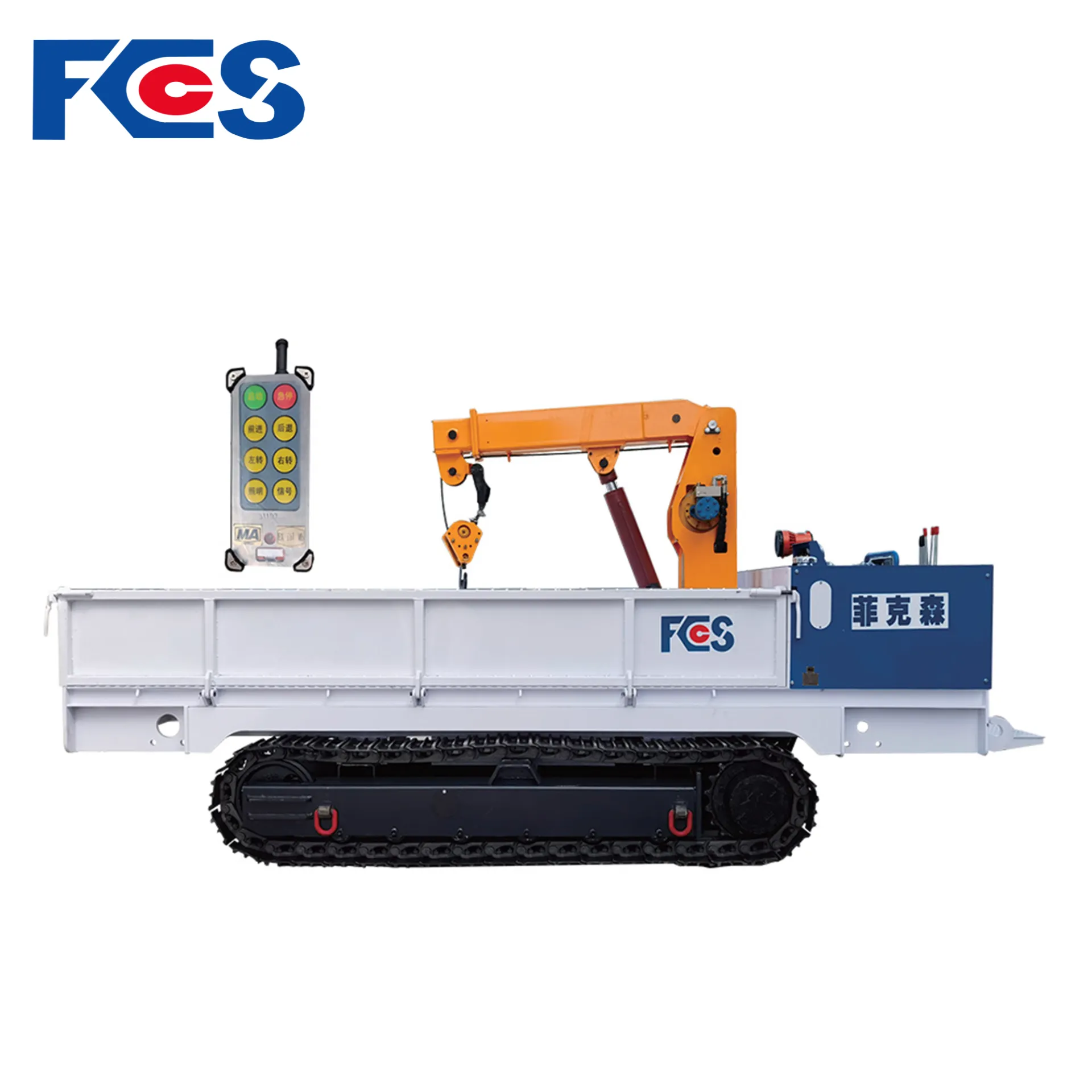

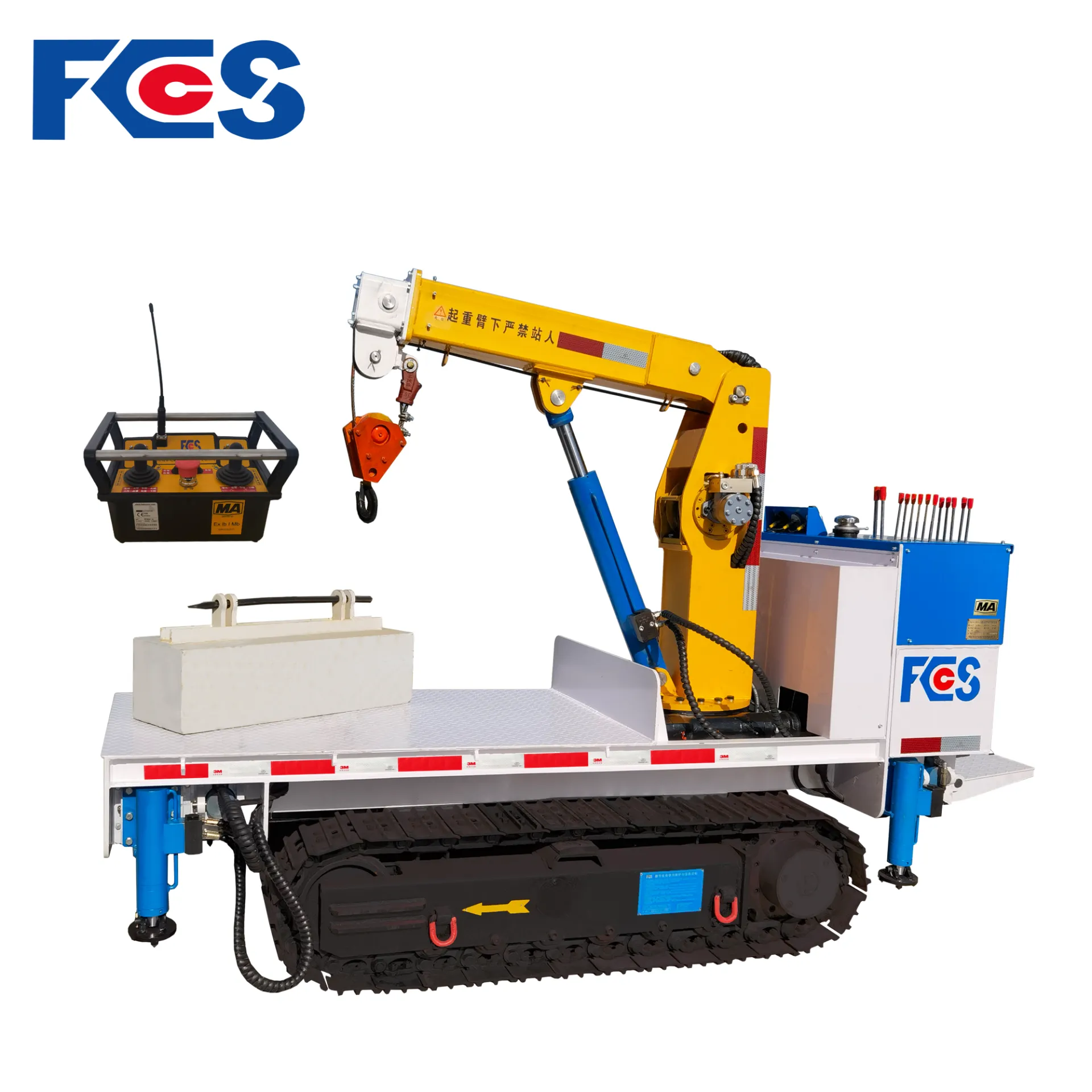

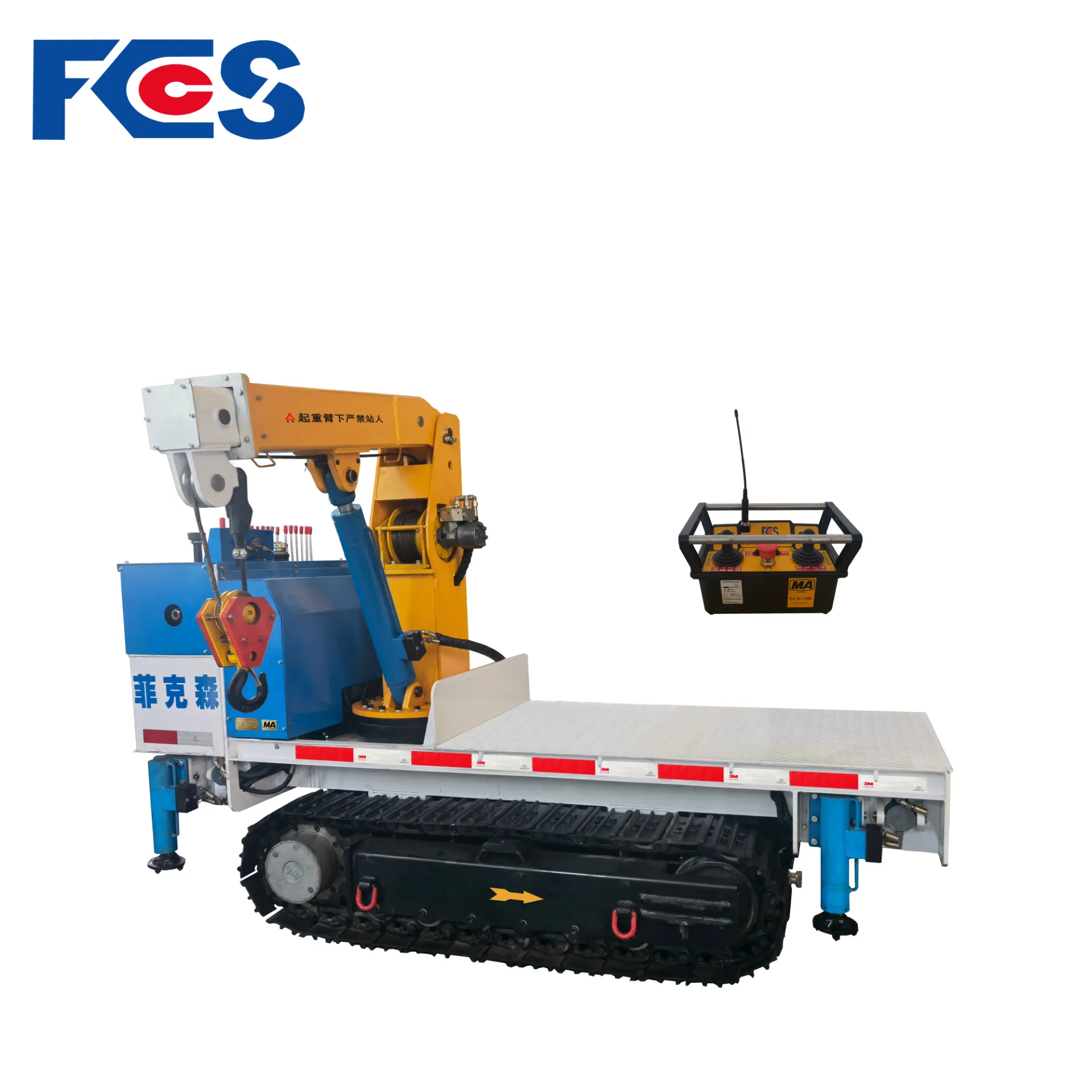

MPCQL Remote Control Tracked Flatbed Transporter

The MPCQL mining tracked flatbed truck uses compressed air as its power source. An air motor drives a gear oil pump to supply oil to the track motors, enabling its self-propelled function. Our company designed and developed this type of transport vehicle after thorough research and investigation of the special working conditions underground. It features entirely independent design and innovation, improving work efficiency while solving problems encountered in conventional transportation.

This transport vehicle has been upgraded and improved based on the original transport vehicle, adding functions such as long-distance remote control, front and rear bidirectional control, and side unloading operation. It is also equipped with a mining explosion-proof lithium-ion battery and a mining explosion-proof diesel generator. The mining explosion-proof lithium-ion battery provides power to the solenoid valves and remote control receiver, while the mining explosion-proof diesel generator is driven by an air motor. When the total voltage of the mining explosion-proof lithium-ion battery drops to 25V, it should be charged promptly. This can be done by turning the three-way ball valve handle to the "charging" position. Operation is simple and convenient, saving time and improving work efficiency. When the vehicle is parked for an extended period, the power switch on the battery box must be turned off to prevent battery depletion and affecting its use.

This transport vehicle features a compact structure, small turning radius, high traction, strong heavy-load climbing ability, high speed, long service life, simple operation, convenient maintenance, and environmental friendliness. It is mainly used in trackless underground work areas, effectively replacing manual labor for carrying heavy objects and can move freely in complex terrain within tunnels. It reduced the labor intensity of workers and improved work efficiency.



Key Features

1. Wireless Remote Control System (Core Advantage)

• Remote operation from a safe distance
• Reduces operator exposure to hazardous environments
• Improves safety in underground operations

2. Tracked Chassis for Underground Mobility

• Strong traction and stability
• Suitable for uneven and soft roadways
• Excellent climbing ability

3. Flatbed Transport Platform

• Suitable for transporting equipment and materials
• Easy loading and unloading
• Stable transport performance

4. High Safety Performance

• Keeps operators away from dangerous zones
• Ideal for high-risk environments
• Improves overall site safety

5. Easy Operation

• User-friendly remote control system
• Flexible and precise control
• Reduced labor intensity

Typical Technical Specifications

Item			unit	MPCQL-10DY	MPCQL-8DY	MPCQL-6DY	MPCQL-5DY
Rated Load Capacity			kg	10000	8000	6000	5000
Dimensions (L×W×H)			mm	4560×900×1900		4560×900×1900
Traction Force			kN	25		25
Machine Weight			kg	2600		2600
Ground Pressure			MPa	0.09		0.09
Ground Clearance			mm	200		200
Noise	Power Level		dB(A)	110		110
	Sound Power Level		dB(A)	120		120
Walking Mechanism	Travel Method		—	Tracked type		Tracked type
	Braking Type		—	Fail-safe brake type		Fail-safe brake type
	Drive Mechanism Type		—	Hydraulic motor		Hydraulic motor
	Travel Mechanism Characteristics		—	Pneumatic motor driven		Pneumatic motor driven
	Rated Pressure		MPa	15		15
	Travel Speed		m/min	0~25		0~25
	Climbing Ability		°	±20		±20
	Track Shoe Width		mm	250		250
Lifting Mechanism	Lifting Method		—	Vertical crane		Vertical crane
	Lifting Weight		kg	5000		5000
	Maximum Lifting Height		mm	2500		2500
	Rotation Angle		°	180		180
Hydraulic pump station	Rated pressure		MPa	16		16
	Rated flow rate		L/min	80		70
	Air motor	Rated working air pressure	MPa	0.5		0.5
		Air consumption	m³/min	12		12
		Rated power	kW	23		23
	Oil pump	Type	—	Gear oil pump		Gear oil pump
		Rated pressure	MPa	16		16
		Displacement	ml/r	63		50
	Oil tank capacity		L	100		100

Applications

• Underground coal mine transport
• Hazardous environment operations
• Equipment and material handling
• Remote operation scenarios
