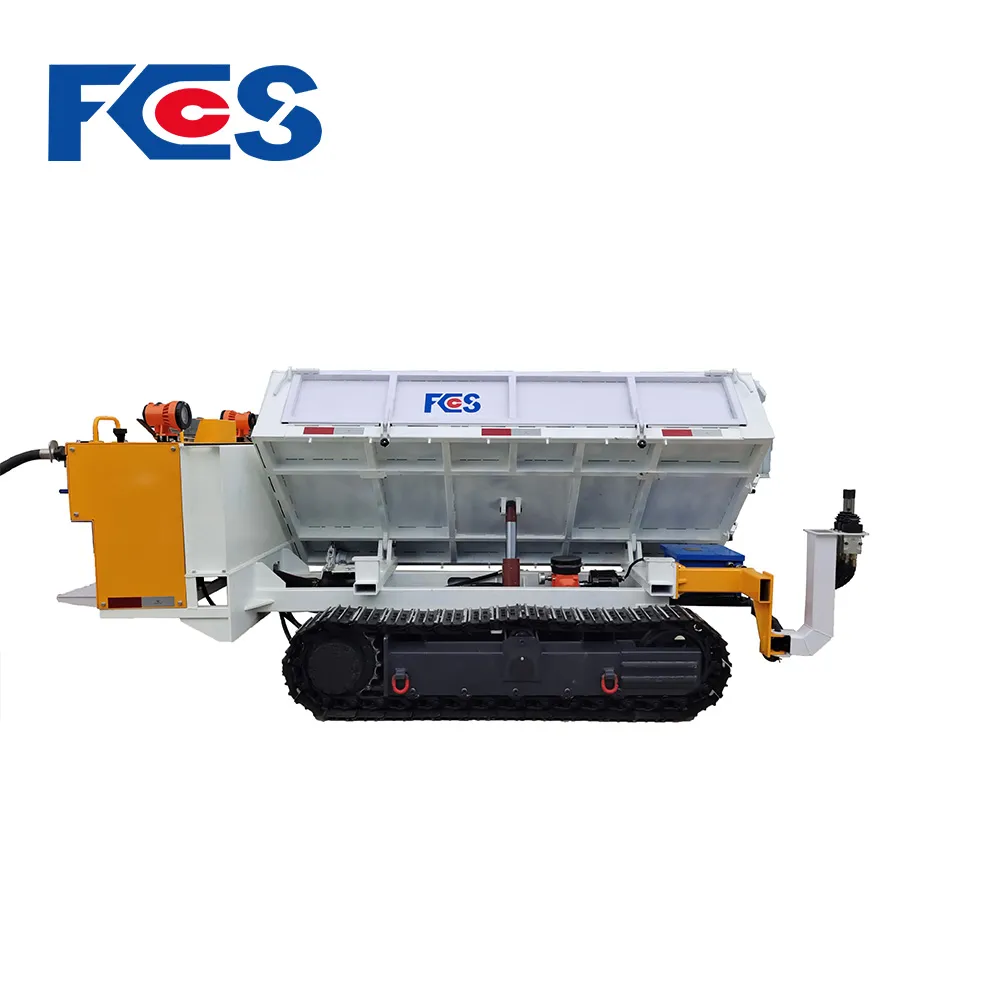

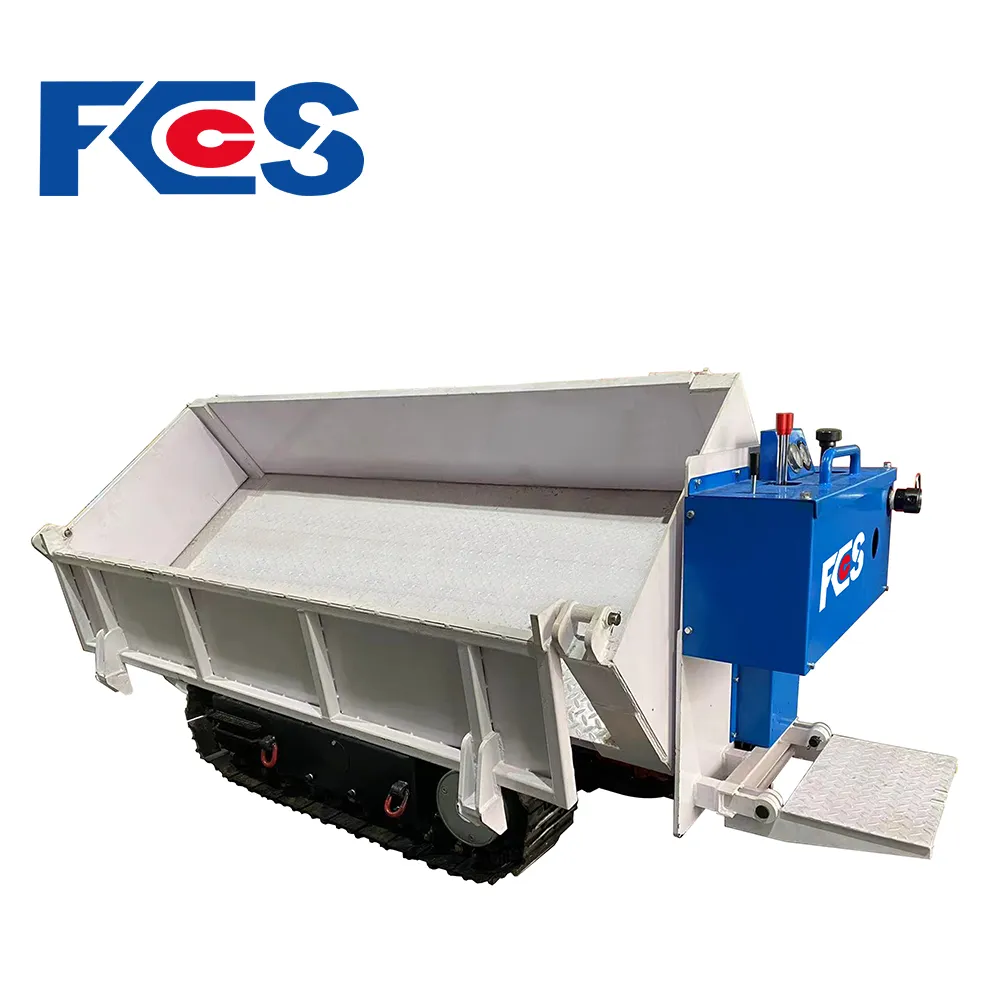

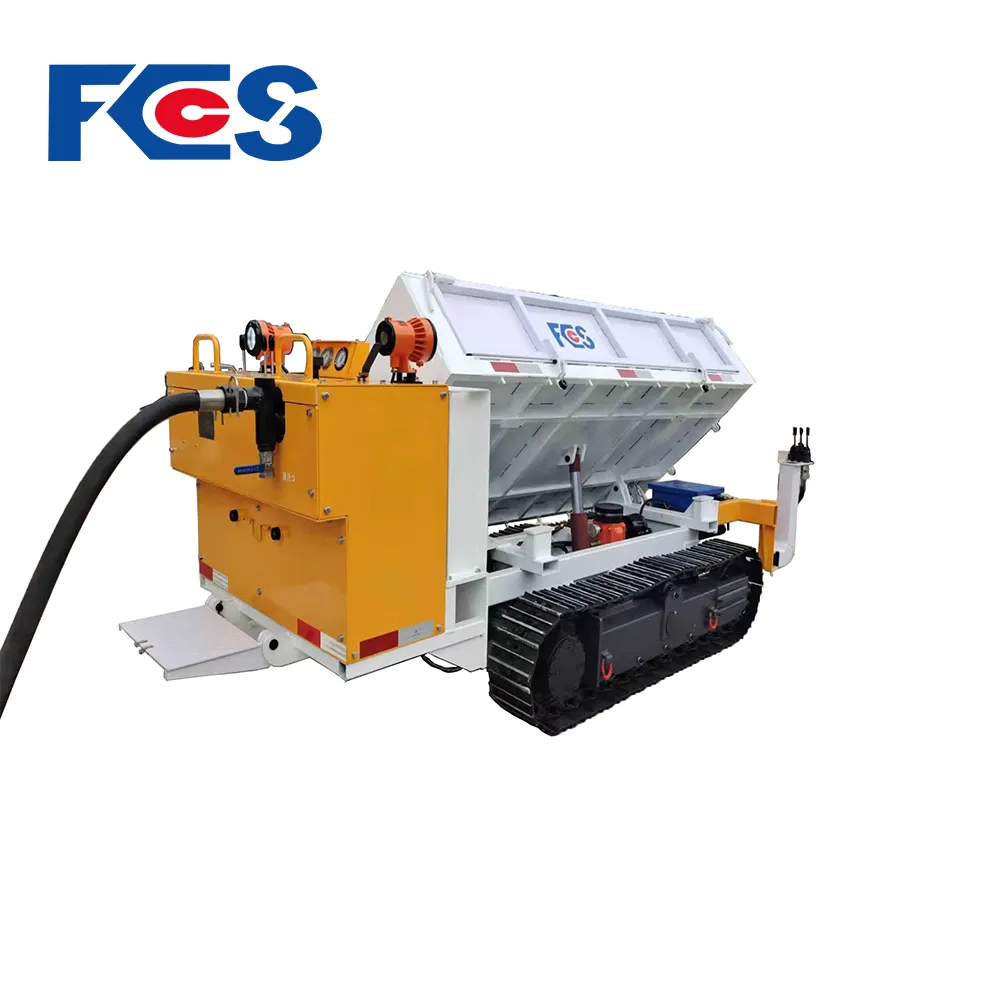

MPCQL Mining Crawler Side-Dump Flatbed Carrier

Mining Crawler Side-Dump Flatbed Carrier uses compressed air as its power source. An air motor drives a gear oil pump to supply oil to the track motors, enabling its self-propelled function. Our company designed and developed this type of transport vehicle after thorough research and investigation of the special working conditions underground. It features entirely independent design and innovation, improving work efficiency while solving problems encountered in conventional transportation.

This transport vehicle has been upgraded and improved based on the original transport vehicle, adding functions such as long-distance remote control, front and rear bidirectional control, and side unloading operation. It is also equipped with a mining explosion-proof lithium-ion battery and a mining explosion-proof diesel generator. The mining explosion-proof lithium-ion battery provides power to the solenoid valves and remote control receiver, while the mining explosion-proof diesel generator is driven by an air motor. When the total voltage of the mining explosion-proof lithium-ion battery drops to 25V, it should be charged promptly. This can be done by turning the three-way ball valve handle to the "charging" position. Operation is simple and convenient, saving time and improving work efficiency. When the vehicle is parked for an extended period, the power switch on the battery box must be turned off to prevent battery depletion and affecting its use.

This transport vehicle features a compact structure, small turning radius, high traction, strong heavy-load climbing ability, high speed, long service life, simple operation, convenient maintenance, and environmental friendliness. It is mainly used in trackless underground work areas, effectively replacing manual labor for carrying heavy objects and can move freely in complex terrain within tunnels. It reduced the labor intensity of workers and improved work efficiency.



Key Features

1. Flatbed + Side Dump Dual Function

• Functions as both a transport vehicle and a side dump loader; Enables quick unloading without additional equipment; Improves operational efficiency underground

2. Tracked Chassis for Harsh Conditions

• Strong traction and stability; Suitable for soft, uneven, and muddy roadways; Excellent climbing ability

3. Efficient Side Discharge System

• Hydraulic side dumping structure; Fast unloading to conveyors or ground; Reduces manual handling

4. High Load Capacity

• Designed for transporting coal, rock, and equipment; Stable structure ensures safe operation

5. Compact & Flexible

• Suitable for narrow underground tunnels; Easy maneuverability; Small turning radius

Applications

• Underground coal mine material transport
• Side unloading operations in roadways
• Tunnel engineering projects
• Combined transport + discharge operations

Typical Technical Specifications

Item			unit	MPCQL-10C	MPCQL-8C	MPCQL-6C	MPCQL-5C	MPCQL-3.5C
Rated Load Capacity			kg	10000	8000	6000	5000	3500
Dimensions (L×W×H)			mm	2800×1000×1270(±50)
Traction Force			kN	25
Machine Weight			kg	2400
Ground Pressure			MPa	0.09
Ground Clearance			mm	200
Noise	Power Level		dB(A)	110
	Sound Power Level		dB(A)	120
Side discharge structure	Rated Pressure		MPa	15
	Rated flow rate		mm	50
	Side discharge angle		(°)	45
Walking Mechanism	Travel Method			Tracked type
	Braking Type			Fail-safe brake type
	Drive Mechanism Type			Hydraulic motor
	Travel Mechanism Characteristics		—	Pneumatic motor driven
	Rated Pressure		MPa	18
	Travel Speed		m/min	14
	Climbing Ability		(°)	±16
	Track Shoe Width		mm	250
Hydraulic pump station	Rated pressure		MPa	20	20	18	18	18
	Rated flow rate		L/min	60	60	50	50	50
	Air motor	Rated working air pressure	MPa	0.5
		Air consumption	m³/min	10	10	9	9	8
		Rated power	kW	23
	Oil pump	Type		Gear oil pump
		Rated pressure	MPa	20	20	18	18	18
		Displacement	ml/r	50	50	40	40	40
	Oil pump 2	Type		Gear oil pump
		Rated pressure	MPa	20	20	18	18	18
		Displacement	ml/r	14
	Oil tank capacity		L	100

Key Advantages for Buyers

• ✔ Dual function: transport + unloading

• ✔ Improves underground efficiency

• ✔ Reduces labor and equipment cost

• ✔ Suitable for complex working environments
