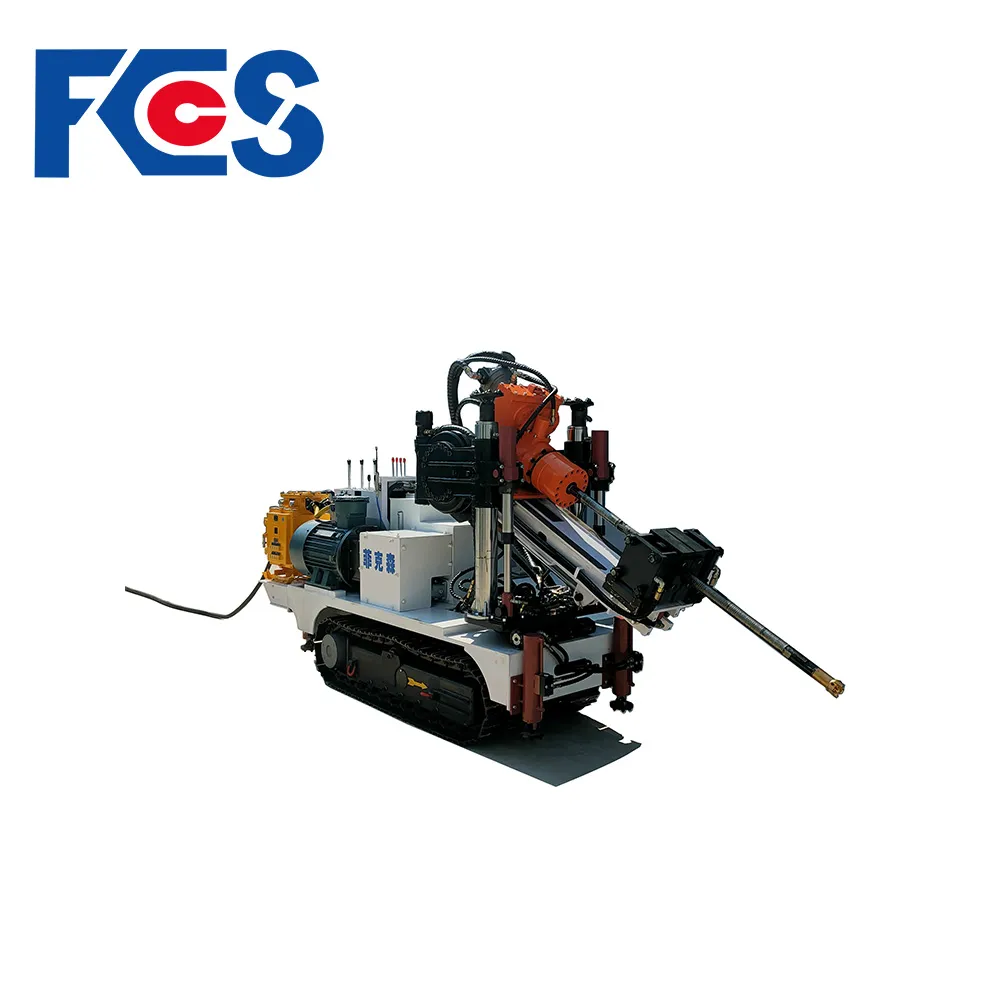

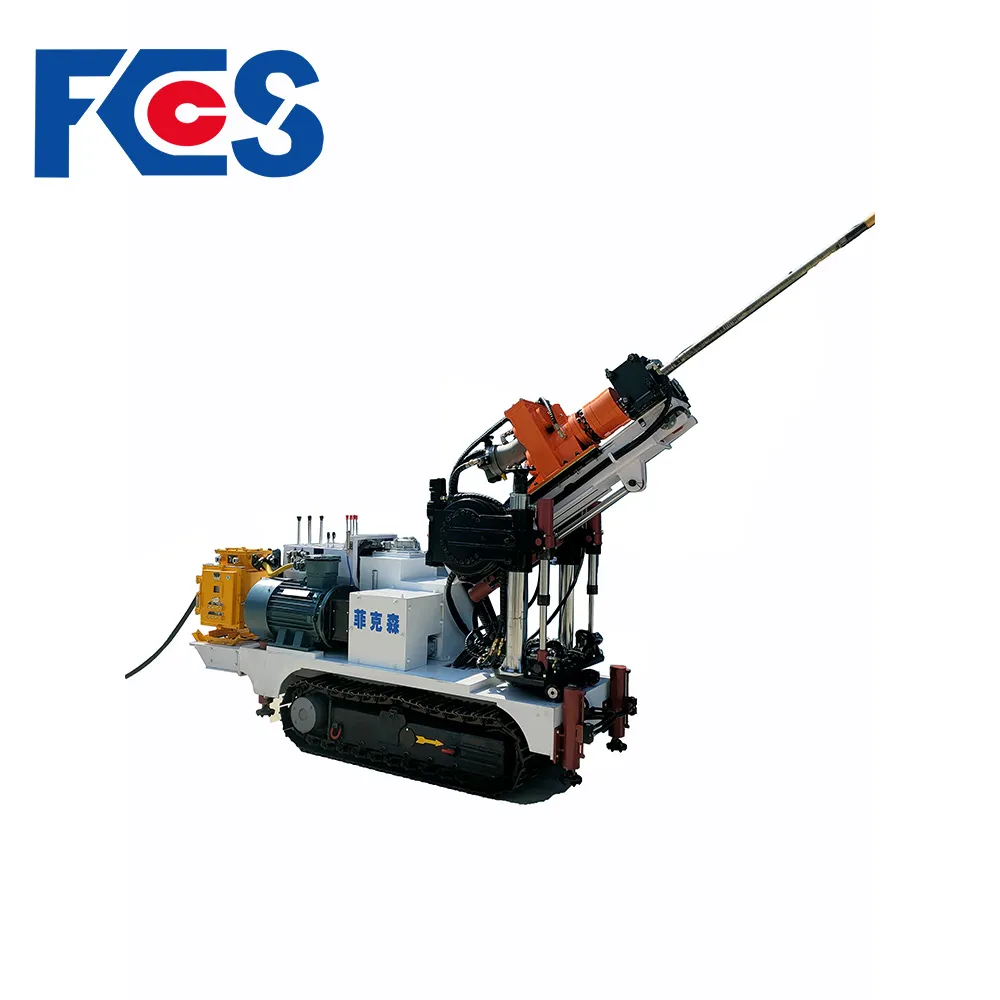

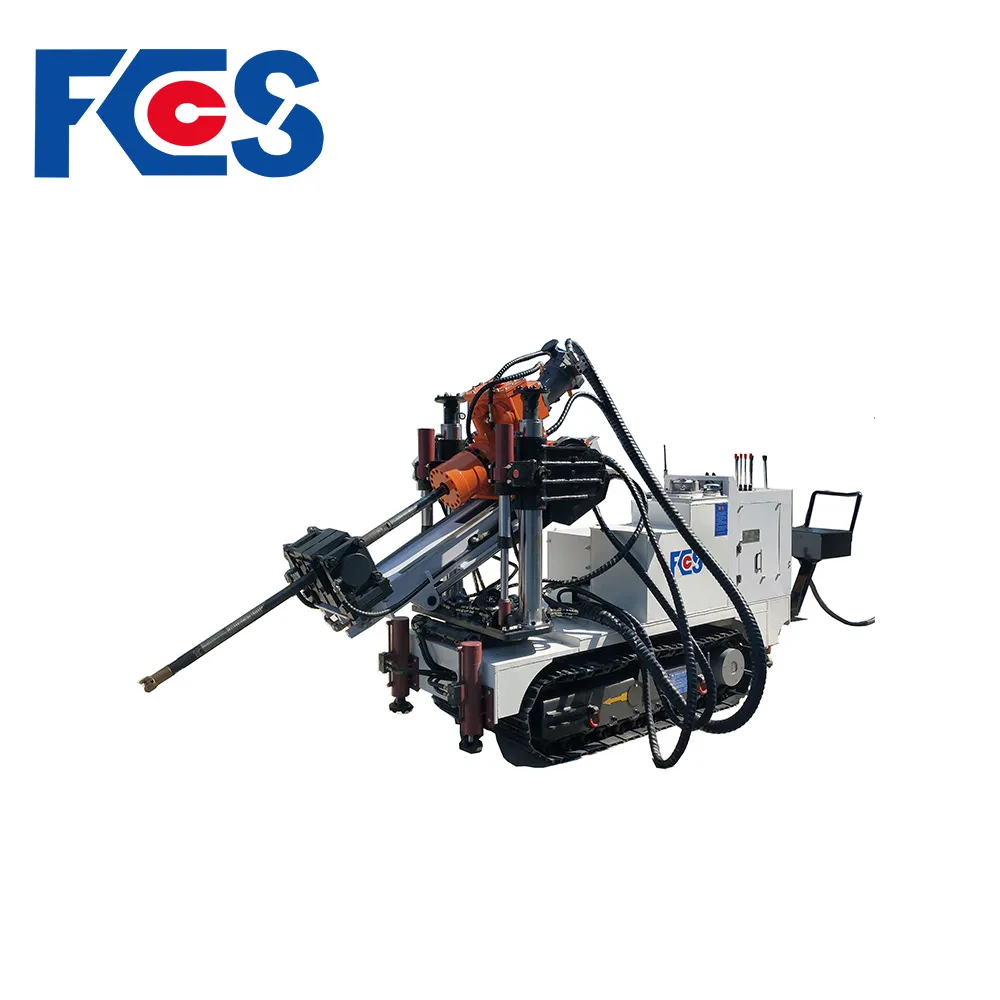

CMS1 Deep Hole Drilling Rig for Coal Mine

The CMS1 deep-hole drilling rig for coal mines is our company's latest coal mine drilling equipment, suitable for detecting gas and water in rock tunnels and coal faces.

This machine features high power, small size, compact structure, easy movement, and simple operation. Because the pump station and main unit are integrated, it occupies little space and can operate normally even in confined spaces.

During operation, the upper and lower hydraulic cylinders firmly support the column, and the outrigger cylinders provide adjustable support, ensuring operational stability. The main unit can be raised and lowered on the column to adjust its height. The main unit can rotate 360 degrees horizontally and vertically, allowing for adjustment to the optimal drilling angle and height.

Key Features

1. Deep Hole Drilling Capability

• Designed for long-distance drilling
• High penetration efficiency
• Suitable for deep borehole operations

2. High-Performance Hydraulic System

• Stable and powerful output
• Smooth operation
• Suitable for continuous heavy-duty work

3. Multi-Drill Arm Design (Optional)

• Improves working efficiency
• Enables simultaneous drilling operations
• Suitable for large-scale projects

4. Strong Structure & Stability

• Robust frame design
• Suitable for underground conditions
• Ensures reliable performance

5. Flexible Operation

• Adjustable drilling angle
• Suitable for different drilling requirements
• Easy control and positioning

Typical Technical Specifications

Item			Unit	CMS1-2000/55
Machine	Working Range (Width * Height)		mm	2100 × 1700
	Overall Dimensions in Operating State (Length × Width × Height)		mm	4700 × 1000 × 1910 (±50)
	Drilling Diameter		mm	φ95
	Drilling Depth		m	200
	Machine weight		kg	6200
Rotary mechanism	Rated working pressure		MPa	10
	Rated working flow rate		L/min	140
	Rated torque		N·m	1400
	Rated speed		r/min	90
	Maximum working pressure		MPa	12.5
Thruster	Thruster Length		(mm)	2500
	Thruster Force		(kN)	38
	Lifting Force		(kN)	28
	Thruster Speed		(m/min)	30
	No-Load Return Speed		(m/min)	30
Traveling Mechanism	Travel Speed		(m/min)	25
	Climbing Ability		(°)	16
	Track Shoe Width		(mm)	250
Hydraulic Pump Station	Rated Working Pressure		(MPa)	26
	Rated Working Flow Rate		(L/min)	200
	Oil Pump	Rated Pressure	MPa	20
		Displacement	ml/r	71/71

Key Advantages for Buyers

• ✔ High efficiency in deep hole drilling
• ✔ Suitable for gas and water exploration
• ✔ Reliable performance in underground conditions
• ✔ Flexible and adaptable operation

Contact Us

Contact us for detailed specifications, videos, and best quotation.
We provide reliable and cost-effective bolting solutions for global mining customers.
