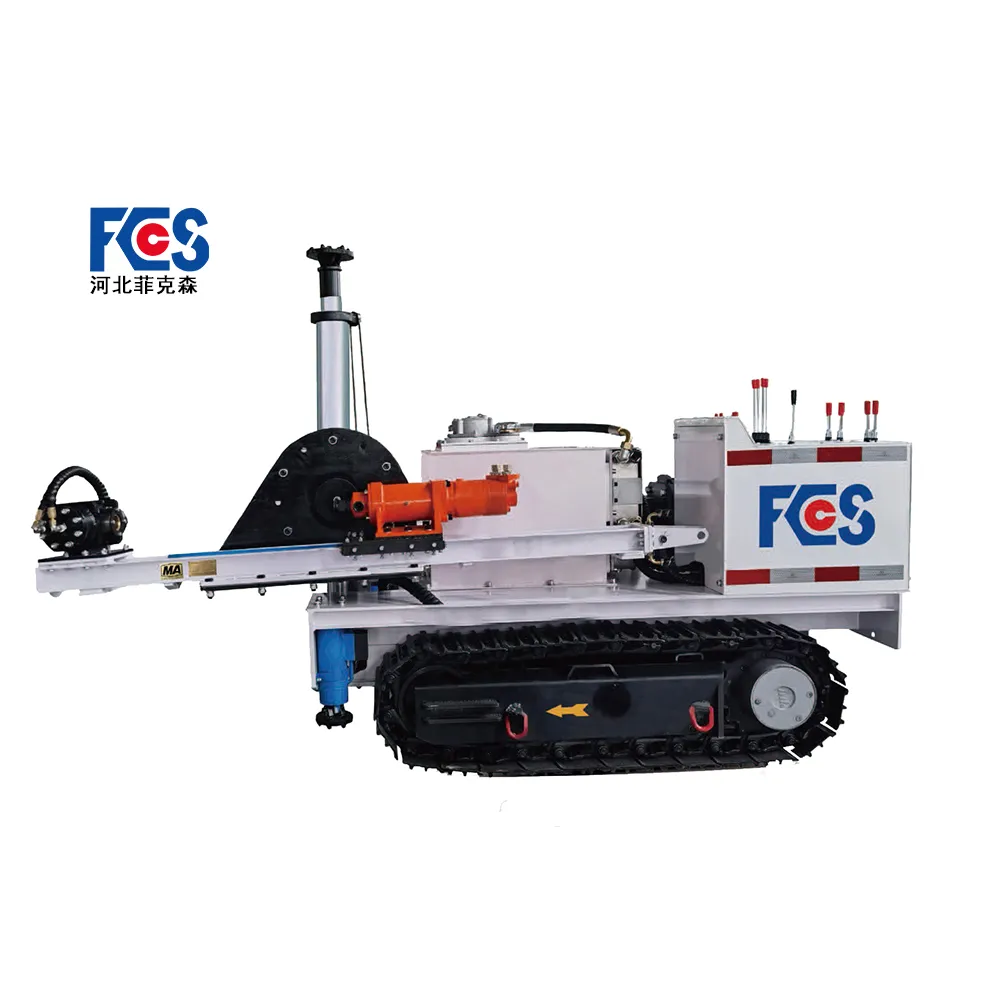

Coal Mine Drilling Machine: Hydraulic Crawler Rigs for Efficiency
Industry Trends and Technological Advancements in Coal Mine Drilling
The global mining industry is undergoing a significant transformation, driven by demands for increased safety, efficiency, and environmental responsibility. In this evolving landscape, the role of a reliable and high-performance coal mine drilling machine is more critical than ever. Modern drilling technologies are moving towards greater automation, precision, and integration of smart systems to optimize resource extraction from challenging geological formations. Key trends include the adoption of advanced hydraulic systems for enhanced power and control, lightweight yet robust materials for easier maneuverability, and sophisticated monitoring systems that provide real-time data on drilling parameters. These innovations aim to reduce operational costs, minimize environmental impact, and significantly improve worker safety within subterranean environments.
The shift towards deeper and more complex mine structures necessitates drilling equipment capable of handling diverse geological strata, from soft coal seams to hard rock layers. This requires machines like the advanced coal mine drilling machine that offer superior thrust, rotary torque, and feed rates. The integration of artificial intelligence and machine learning is also on the horizon, promising predictive maintenance and adaptive drilling operations. Such advancements are not just about raw power but also about intelligent operation, ensuring that every drill hole is executed with maximum precision and minimal waste. The future of mining hinges on these sophisticated tools, driving productivity and sustainability hand-in-hand.
Understanding the A Drilling Rig With A Simple Structure: Technical Specifications
The A Drilling Rig With A Simple Structure, exemplifies the balance between robust performance and operational simplicity, making it an ideal coal mine drilling machine for various underground and surface applications. This specific model is engineered for reliability in demanding environments, delivering consistent power and precision crucial for efficient coal exploration, ventilation shaft drilling, and underground utility installations. Its design emphasizes ease of maintenance and a reduced learning curve for operators, ensuring quick deployment and sustained productivity. The hydraulic systems are optimized for energy efficiency, minimizing power consumption while delivering high torque and thrust needed to penetrate diverse rock formations.
Key Technical Parameters and Specifications
| Parameter | Specification (A Drilling Rig) | Unit |
|---|---|---|
| Drilling Depth (Max) | 200 - 300 | meters |
| Hole Diameter Range | 75 - 300 | mm |
| Rotary Torque | 2500 - 4500 | N·m |
| Max Feed Force | 30 - 50 | kN |
| Power Source | Electric/Hydraulic | kW |
| Operating Pressure | 18 - 25 | MPa |
| Weight (Approx) | 1500 - 3000 | kg |
These specifications highlight the rig's capability to perform high-efficiency drilling in various geological conditions, including fractured rock, soft soil, and complex coal seams. The robust hydraulic system ensures stable power delivery and precise control, which is critical for maintaining hole integrity and maximizing penetration rates. The adaptable design allows for quick changes in drilling methods, from rotary drilling with tricone bits to DTH (Down-The-Hole) hammer drilling for harder formations, making it a versatile asset in any mining operation requiring a flexible coal mine drilling machine.
Manufacturing Excellence: Crafting the Coal Mine Drilling Machine
The production of a high-performance coal mine drilling machine involves a meticulously controlled manufacturing process, adhering to stringent international standards to ensure durability, safety, and efficiency. The journey begins with the selection of premium-grade materials, specifically high-tensile strength alloy steels (e.g., Q345B, 40Cr) for structural components and specialized wear-resistant alloys for critical drilling parts like drill rods and bits. These materials are chosen for their superior mechanical properties, including yield strength, impact toughness, and fatigue resistance, which are essential for enduring the extreme stresses encountered in underground drilling operations.
Material Selection and Manufacturing Processes
Manufacturing processes include precision casting for complex hydraulic components, ensuring high dimensional accuracy and internal integrity. For heavy-duty structural elements, robust forging techniques are employed to enhance grain structure and eliminate internal defects, drastically improving strength and service life. Subsequent CNC (Computer Numerical Control) machining operations provide micron-level precision for interlocking parts, gear systems, and hydraulic manifolds, guaranteeing optimal performance and seamless integration. Surface treatments such as nitriding, carburizing, and specialized coatings are applied to wear parts, providing exceptional anti-corrosion properties and extending the lifespan, particularly in corrosive underground mining environments where resistance to moisture and acidic conditions is paramount. These processes contribute to the machine's ability to operate efficiently in industries ranging from petrochemical and metallurgy to general water supply and drainage projects, demonstrating its versatility beyond just coal mining.
Quality Assurance and Longevity
Every coal mine drilling machine undergoes rigorous multi-stage testing and inspection protocols in accordance with international standards such as ISO 9001 for quality management and ANSI (American National Standards Institute) for performance and safety. Non-destructive testing (NDT) methods like ultrasonic and magnetic particle inspection are routinely performed on critical welds and components to detect any latent flaws. Hydraulic systems are subjected to pressure cycle tests, far exceeding operational limits, to verify seal integrity and component robustness. This commitment to quality ensures an estimated service life of 10-15 years under typical operational conditions, with a focus on ease of component replacement to facilitate extended longevity. This meticulous approach guarantees a drilling rig that is not only high-performing but also a long-term, reliable investment, often demonstrating significant energy savings due to optimized hydraulic power transmission and reduced material fatigue.
Application Scenarios and Operational Advantages of Coal Mine Drilling Machine
The versatility of a modern coal mine drilling machine extends across a myriad of critical operations within the mining sector and beyond. Primarily, these machines are indispensable for coal exploration, allowing geologists to precisely map coal seams and evaluate reserves. Beyond exploration, they are crucial for drilling blast holes for controlled demolition, creating ventilation shafts to ensure air quality and safety, and preparing boreholes for methane drainage to prevent gas explosions. Furthermore, they are extensively used for support hole drilling for roof bolting and cable anchoring, essential for maintaining the structural integrity of underground tunnels. The adaptability of these rigs, particularly hydraulic crawler drill machines and hydraulic rotary drilling machines, makes them suitable for varied geological conditions and operational requirements.
Key Benefits and Performance Metrics
The operational advantages of advanced drilling rigs are substantial. High penetration rates, driven by powerful hydraulic systems and optimized drill bit designs, significantly reduce drilling time, thereby increasing overall productivity. Precision control, often enhanced by automated systems, ensures accurate hole alignment and depth, minimizing re-drilling and material waste. Safety is paramount, with features like remote control capabilities, emergency stops, and robust shielding protecting operators from hazards. Economically, the energy-efficient design of modern hydraulic crawler drilling rigs translates to lower fuel or electricity consumption, reducing operational expenditures. For instance, advanced models can achieve up to a 15% reduction in energy consumption compared to older designs, contributing to a lower carbon footprint and substantial long-term savings. The machine's anti-corrosion features ensure longevity even in harsh, damp, and chemically aggressive underground environments, safeguarding the investment and ensuring consistent performance over many years.
Comparative Analysis: Selecting the Right Drilling Solution
Choosing the optimal coal mine drilling machine requires a thorough comparison of available technologies and manufacturer offerings. While specific product names are reserved, a general comparison between common drilling rig types can highlight the strengths and weaknesses that influence procurement decisions for B2B stakeholders. The "A Drilling Rig With A Simple Structure" represents a class of robust and user-friendly machines, contrasting with more complex, highly automated systems or simpler, less powerful options. Key differentiators include power source (electric vs. diesel hydraulic), mobility (crawler vs. truck-mounted), and drilling method (rotary vs. DTH). Understanding these distinctions is critical for matching equipment to specific operational needs and geological conditions.
Drilling Rig Comparison Table (Illustrative)
| Feature/Type | Hydraulic Rotary Drilling Machine (e.g., A Rig) | Hydraulic Crawler Drill Machine (Advanced) | Pneumatic Drilling Rig (Basic) |
|---|---|---|---|
| Power Source | Electric/Hydraulic | Diesel Hydraulic | Air Compressor |
| Drilling Method | Rotary, some DTH | Rotary & DTH | DTH Hammer |
| Mobility | Crawler/Skid-mounted | Crawler (high maneuverability) | Wheeled/Skid-mounted |
| Typical Depth | Medium (100-300m) | Deep (200-500m+) | Shallow to Medium (50-200m) |
| Automation Level | Manual/Semi-automated | High Automation, Remote Op. | Manual |
| Cost Efficiency | Good balance of cost/performance | Higher initial, lower operational | Lower initial, higher operational for deep drilling |
Manufacturers like Fccs Drilling (parent company) often offer a range of hydraulic crawler drill machine and hydraulic crawler drilling rig options, each tailored for specific applications. Our 'A Drilling Rig With A Simple Structure' excels in scenarios demanding reliable performance without excessive complexity, offering a cost-effective yet powerful solution. For high-volume, deep-hole projects, a more advanced hydraulic crawler drilling rig might be preferred, while simpler, shallower tasks could utilize a pneumatic rig. Evaluating geological conditions, project scale, budget, and long-term maintenance considerations are paramount in this decision-making process.
Customization and Application Success Stories
Tailored Solutions for Diverse Geological Conditions
Recognizing that no two mining sites are identical, leading manufacturers excel in providing customized coal mine drilling machine solutions. This involves adapting existing designs to meet specific client requirements, whether it's optimizing drilling angles for inclined shafts, enhancing power units for extremely hard rock formations, or integrating specialized drill bits for friable coal seams. Customization extends to control systems, mobility options, and even environmental considerations like noise reduction and dust suppression. For example, a recent project involved adapting a standard hydraulic rotary drilling machine for use in a highly confined underground space, requiring a modular design for easier assembly and disassembly in challenging conditions, which significantly reduced operational downtime for the client.
Client Testimonials and Field Performance
Our commitment to engineering excellence is consistently validated by our clients' field experiences. A major coal mining company in Shanxi Province, China, reported a 20% increase in daily drilling meterage after deploying our customized 'A Drilling Rig With A Simple Structure' models, attributing the success to the machine's robust hydraulic system and minimal maintenance requirements. Another client, involved in specialized geological exploration, praised the precision and stability of our hydraulic crawler drill machine, stating it significantly improved data collection accuracy in complex strata. With over 15 years of service in the drilling industry, our reputation is built on delivering high-performance, reliable drilling rigs that directly contribute to our clients' operational efficiency and profitability, underpinned by stringent quality certifications like ISO 9001 and extensive in-house testing.
Trust and Assurance: Our Commitment to Clients
Frequently Asked Questions (FAQ)
- Q: What is the typical lead time for a coal mine drilling machine order?
A: Standard models typically have a lead time of 4-6 weeks from order confirmation. Customized configurations may require 8-12 weeks, depending on complexity. - Q: What kind of warranty do you offer on your drilling rigs?
A: We provide a standard 12-month warranty on major components from the date of commissioning or 18 months from delivery, whichever comes first. Extended warranty options are available. - Q: Do you offer after-sales support and spare parts?
A: Absolutely. We offer comprehensive after-sales support, including technical assistance, on-site training, and a readily available inventory of genuine spare parts to minimize downtime. Our global service network ensures prompt response. - Q: Can your rigs operate in various climate conditions?
A: Yes, our drilling rigs are engineered to perform reliably in a wide range of environmental conditions, from extreme cold to high humidity, with options for specialized packages for specific climate zones.
Delivery and Support Services
Our commitment to our clients extends beyond the sale. We guarantee efficient logistics and delivery, working with trusted global freight partners to ensure your coal mine drilling machine arrives safely and on schedule. Our delivery cycle is meticulously managed, from factory acceptance tests to final site delivery. Upon arrival, our experienced technical support team is available for installation supervision, commissioning, and comprehensive operator training, ensuring your team is fully equipped to maximize the machine's potential. Our robust quality assurance protocols and ISO certifications provide unparalleled trustworthiness, ensuring every product meets the highest industry standards. With a dedicated customer support line and online resources, we provide ongoing assistance throughout the lifespan of your drilling rig, solidifying our promise of a durable partnership.
