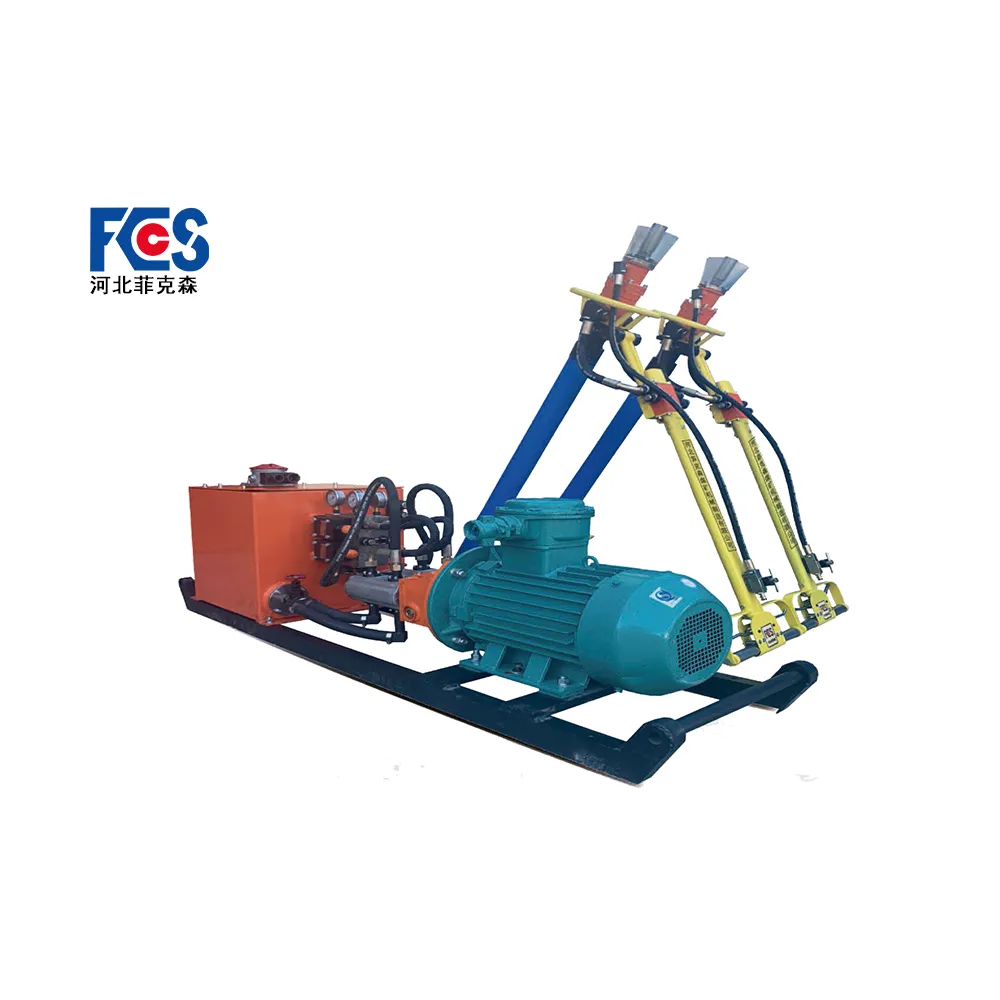

Hydraulic Piling Rig Machine – High Torque, Fast, Crawler
Field Notes on the Hydraulic Piling Rig Machine
If you spend enough time on job sites, you notice a pattern: the rigs that keep working after dusk are the hydraulic ones, especially when the ground is moody. The Hydraulic Piling Rig Machine I’ve been following lately comes from the Shijiazhuang High-tech Industrial Development Zone, Hebei Province—home base for FCCS Drilling’s Hydraulic Bolting Rigs line. It’s technically an anchor drilling platform, but with the right rotary head and tooling, contractors are using it for micropiles, soil nails, and small-diameter pile foundations. To be honest, that versatility is why it’s winning bids in tunneling and slope stabilization as well.
Industry trends (and a few job-site truths)
Three themes keep popping up: Stage V/Tier 4 Final engines to pass city permits, telematics for uptime, and modular masts to switch between anchors and micropiles without a trailer full of spare parts. Actually, many customers say remote diagnostics matter more than raw torque now—if a sensor flags pressure drift before the night pour, that’s money saved.
How it’s built and tested
- Materials: high-tensile Q550–Q690 steel frames; quenched-and-tempered rotary shafts; abrasion-resistant rod guides.
- Methods: robotic welding, CNC machining, and anti-corrosion epoxy + powder topcoat.
- Testing standards: EN 16228 series for drilling/foundation equipment, ISO 4413 for hydraulics, and CE marking. Factory runs NDT weld checks and 8-hour load/heat cycling.
- Service life: ≈ 8–12 years in real-world use with midlife seal kit and bearing refresh.
- Industries: geotechnical contractors, tunnel & metro works, mining galleries, port tiebacks, wind farm micropiles.
Typical specs (real-world use may vary)
| Hole diameter range | 90–250 mm (micropiles/anchors) |
| Max rotary torque | ≈ 12–18 kN·m |
| Feed/Pullback force | 60 / 80 kN (around) |
| Stroke / Mast tilt | 3.2 m stroke; ±90° drilling, ±15° mast tilt |
| Hydraulic pressure | up to 28 MPa |
| Engine | Stage V/Tier 4F 90–110 kW, low-NOx |
| Noise level | 85 ± 3 dB(A) at operator position |
| Weight | ≈ 10–13 t (configuration dependent) |
Where it earns its keep
- Tunnel crowns and sidewalls: anchor bolts + spiles in fractured rock.
- Urban basements: micropiles with low headroom kits.
- Slope stabilization: soil nails, tiebacks, and drains after heavy rain cycles.
- Mining: gallery support where diesel particulate and noise caps are strict.
Process flow, start to finish
Plan → rig setup/level → pilot with air/mud → ream/OD casing if needed → install bar/strand → grout (one- or two-stage) → pull test (per EN/ASTM) → document torque/pressure logs. Field data I’ve seen: fuel 8–12 L/h, rig uptime > 92% with preventive maintenance.
Customization options
Swappable rotary heads for torque/speed, extended mast for 4+ m stroke, narrow undercarriage for metro shafts, automatic rod handler, telemetry, and low-emission packages. The Hydraulic Piling Rig Machine can be tuned for grout pressure monitoring and inclinometer logging if the consultant insists (they usually do).
Quick vendor comparison (indicative)
| Vendor | Torque | Certs | Lead time | Notes |
|---|---|---|---|---|
| FCCS Drilling | ≈ 18 kN·m | CE, ISO 9001 | 6–10 weeks | Good parts support; anchor/micropile hybrid |
| Brand X | 15 kN·m | CE | 10–14 weeks | Cheaper base; fewer telematics options |
| Brand Y | ≈ 20 kN·m | CE, ISO 14001 | 12–16 weeks | Premium pricing; strong EU service network |
Case notes and feedback
Metro tunnel, North China: 1,200 anchors, RQD 35–55%. Average cycle time dropped 14% after switching to auto rod handling. Consultant accepted pull tests at 1.5× design load. “Stability in fractured siltstone was surprisingly good,” the PM told me.
Port micropiles, SE Asia: saline spray, soft clays over sand. Dual-casing setup with grout pressure logging met spec; noise kept under 86 dB(A) at boundary at night—neighborhood happy, which is rare.
Compliance, data, and paperwork
- Certifications: CE (2006/42/EC), ISO 9001; hydraulic design in line with ISO 4413.
- Testing: torque curve verification on calibrated bench; thermal soak to 45°C ambient equivalent.
- Safety: e-stop loop, load-holding valves, guarding per EN 16228; operator training pack included.
Bottom line? If you need a Hydraulic Piling Rig Machine that moonlights as an anchor driller (or vice versa), this platform’s balance of torque, transport weight, and telemetry is hard to argue with. And yes, parts availability out of Hebei has been better than expected.
Authoritative citations
- EN 16228: Drilling and foundation equipment — Safety.
- ISO 4413: Hydraulic fluid power — General rules and safety requirements.
- ASTM D1143/D1143M: Standard Test Methods for Deep Foundations Under Static Axial Compressive Load.
- ISO 9001: Quality management systems — Requirements.
